Product Details:
Payment & Shipping Terms:
|
Temperature Range: | 18~30℃ | Power Supply: | 2*1.5V AAA Batteries |
---|---|---|---|
Work Humidity Range: | 10~80%RH | Product Model: | GM200A |
Highlight: | GM200A NDT Testing Equipment,2mil NDT Testing Equipment,0.05mm film coating thickness gauge |

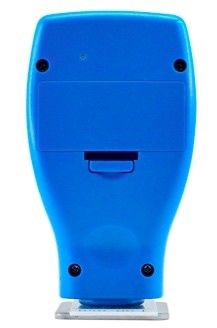

Film Coating Thickness Gauge GM200A Nondestructive Testing
This product is a portable coating thickness gauge,which can quickly, nondestructively, and accurately measure non-metallic coating thickness (such as paint,film, etc.) of metal substrate. It Is widely used in detection areas like manufacturing industry, Car washing industry, metal processing industry, chemical industry,and commodity inspection.
Mini Coating Thickness Gauge possesses the following features:
1.Measure coating thickness of metal substrate
surface
2.Two modes: Car/User
3.Three measurement ways: single measurement,
continuous measurement, difference value
measurement
4.Three calibration functions: zero calibration,
two-point calibration, and basic calibration
5.Metric unit and imperial unit
6.Auto power off
Specifications:
Measurement range | 0 1.80m 71.0 ~ m/0~ mil |
Car mode resolution | 0.05mm/2mil |
User mode resolution | 0.01mm/1mil |
Measurement error | ±0.1mm |
Minimum diameter of substrate |
50mm |
Minimum thickness of substrate |
0.5mm |
Temperature range | 18~30℃ |
Work humidity range | 10~80%RH |
Power | 2*1.5V AAA batteries |
