SMLP Space Ex Heater ELECTRICAL SMART Ex HEATER FOR SPACE HEATING MODEL SMLP-(*)A

Name: SMLP Space Ex Heater ELECTRICAL SMART Ex HEATER FOR SPACE HEATING MODEL SMLP-(*)A
Brand: condor
SKU: MODEL SMLP-(*)A
Rating: 4.9 (166 reviews)

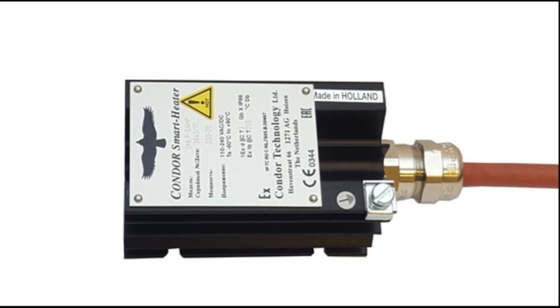

Large Image : SMLP Space Ex Heater ELECTRICAL SMART Ex HEATER FOR SPACE HEATING MODEL SMLP-(*)A

Product Details:

Place of Origin:	Mauritius
Brand Name:	condor
Certification:	KEMA 01ATEX2124X and IECEx DEK 11.0017
Model Number:	MODEL SMLP-(*)A

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	EURO/USD
Packaging Details:	carton
Delivery Time:	2-4 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Features:	Self-limiting Heating ElementsSmall Dimensions	Ambient Temperature Range:	– 60°C…+ 90°C
Housing Material:	Black Anodized Aluminium (A)	Explosion Proof Rating:	II 2G Ex D IIC T4 Or T3
Certifications:	KEMA 01ATEX2124X And IECEx DEK 11.0017	Voltage:	110/240
Wattage:	100-10 Watt Or 200-20 Watt	Protection Level:	II 2D Ex TD A21 IP66 T 135°C Or T200 °C
Power Source:	Electric	Color:	Black

Description

1 Application

Space-heaters for Hazardous locations. This compact model is designed for

Anticondensation
Freeze protection
Temperature maintenance
Small spaces

2 Features and Advantages

Self-limiting heating elements
Small dimensions
No moving parts, no maintenance required therefore long lifetime
Suitable for T4 and T3 classifications
Can be used for 110/240 VAC/DC, also available for the SMLP-4A in 24V.

3 Remarks

All SMART Space-heaters are designed around self-limiting heating elements. These semi-conductor elements are saving power consumption.
Our SMART Space-heaters are designed to heat the air inside an enclosure and indirectly the installed equipment. If properly selected for freeze protection, no thermostat will be needed
When required in other applications, e.g. analyzers, it is normal practice to use our Space-Heaters in combination with our Fix-Therm96 thermostats (range from 10 °C up to 135 °C) or our FixTherm Inline Thermostat(range from 10°C up to 60°C).
Do not cover the fins to guarantee free convection.

4 Range

SMLP-1A	T3	ca. 115°C Surface temperature*	100-10 Watt
SMLP-2A	T4	ca. 115°C Surface temperature*	100-10 Watt
SMLP-3A	T4	ca. 90°C Surface temperature*	100-10 Watt
SMLP-4A	T4	ca. 70°C Surface temperature*	100-10 Watt
SMLP-0AHP (High power model)	T3	130°C Surface temperature*	200-20 Watt

* these temperatures are measured at 20°C ambient temperature.

SMLP Space Ex Heater ELECTRICAL SMART Ex HEATER FOR SPACE HEATING MODEL SMLP-(*)A 0

5 Technical data

Power consumption	100-10 Watt or 200-20 Watt
Electrical cable	3 x 1 sqmm
Material cable	braided silicone, optional: non-braided cable
Standard length	ca. 1 mtr. Other lengths optional, on request
Weight	ca. 350 g.
Overall dimensions	100 x 54 x 54 mm (LxWxH)
Material	black anodized aluminium, nickel plated aluminium max 20 mu
EX protection class	II 2G Ex d IIC T4 or T3 II 2D Ex tD A21 IP66 T 135°C or T200 °C
Certification	KEMA 01ATEX2124X and IECEx DEK 11.0017
Protect degree	IP 66
Voltage AC?DC	110/240
Ambient temp. range	– 60°C … + 90°C
