Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting CS Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL CS-(*)S (Body: 316 Stainless Steel)

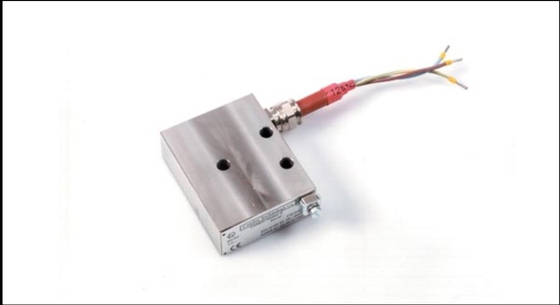

Large Image : Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting CS Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL CS-(*)S (Body: 316 Stainless Steel)

Product Details:

Place of Origin:	Mauritius
Brand Name:	condor
Certification:	KEMA 01ATEX2124X and IECEx DEK 11.0017
Model Number:	MODEL CS-(*)S (Body: 316 Stainless Steel)

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	EURO/USD/HKD
Packaging Details:	carton
Delivery Time:	2-4 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Features:	Can Be Used For 110/240 VAC/DC	Ambient Temperature Range:	– 60°C…+ 90°C
Housing Material:	Stainless Steel 316	Explosion Proof Rating:	II 2G Ex D IIC T4 Or T3
Certifications:	KEMA 01ATEX2124X And IECEx DEK 11.0017	Voltage:	110/240
Wattage:	250-25 Watt	Protection Level:	II 2D Ex TD A21 IP66 T 135°C Or T200 °C
Power Source:	Electric	Color:	Black

Description

1 Application

Direct-heaters for Hazardous locations, designed for direct mounting onto e.g. manifolds etc.

Anticondensation
Freeze protection
Temperature maintenance

2 Features and Advantages

Self-limiting heating elements
Small dimensions
No moving parts, no maintenance required, therefore long lifetime
Suitable for T4 and T3 classifications
Can be used for 110/240 VAC/DC

3 Remarks

All Cameo Heaters are designed around self-limiting heating elements. These semi-conductor elements are saving power consumption. Our Cameo Direct-heaters are designed to heat the installed equipment. If properly selected for freeze protection, no thermostat will be needed.
When required in other applications, e.g. analyzers, it is normal practice to use our Direct-heaters in combination with our Fix-Therm96 thermostats (range from 10°C up to 135°C) or our FixTherm Inline Thermostat(range from 10°C up to 60°C).

4 Range

CS-1S	T3	ca. 115°C Surface temperature*	250-25 Watt
CS-2S	T4	ca. 105°C Surface temperature*	250-25 Watt
CS-3S	T4	ca. 90°C Surface temperature*	250-25 Watt
CS-4S	T4	ca. 70°C Surface temperature*	250-25 Watt

* these temperatures are measured at 20 °C ambient temperature.

Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting CS Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL CS-(*)S (Body: 316 Stainless Steel) 0

5 Technical data

Power	250-25 Watt
Electrical cable	3 x 1 sqmm
Material cable	braided silicone, optional: non-braided cable
Standard length	ca. 1 mtr. Other lengths optional
Overall dimensions	85x65x28 mm (LxWxH)
Weight	ca. 900 g.
Material	Stainless steel 316
EX protection class	II 2G Ex d IIC T4 or T3 II 2D Ex tD A21 IP66 T 135°C or T200 °C
ATEX Certification	KEMA 01ATEX2124X and IECEx DEK 11.0017
IP degree	IP 66
Voltage AC/DC	110/240
Ambient temp. range	– 60°C….+ 90°C
