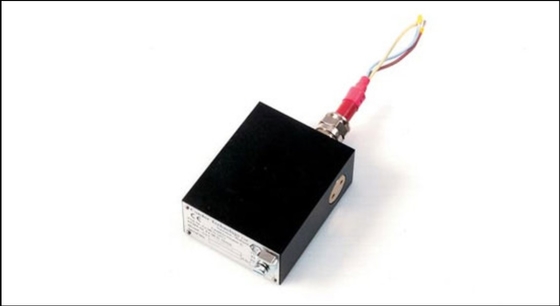

Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting CT Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL CT-(*)A

Large Image : Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting CT Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL CT-(*)A

Product Details:

Place of Origin:	Mauritius
Brand Name:	condor
Certification:	KEMA 01ATEX2124X and IECEx DEK 11.0017
Model Number:	MODEL CT-(*)A

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	EURO/USD/HKD
Packaging Details:	carton
Delivery Time:	2-4 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Features:	Small Dimensions	Ambient Temperature Range:	– 60°C…+ 90°C
Housing Material:	Black Anodized Aluminium	Explosion Proof Rating:	II 2G Ex D IIC T4 Or T3
Certifications:	KEMA 01ATEX2124X And IECEx DEK 11.0017	Voltage:	110/240
Wattage:	250-25 Watt	Protection Level:	II 2D Ex TD A21 IP66 T 135°C Or T200 °C
Power Source:	Electric	Color:	Black
IP Degree:	IP 66

Description

1 Application

Direct-heaters for Hazardous locations, designed for direct mounting onto e.g. manifolds etc.

Freeze protection
Anti-condensation
Temperature maintenance

2 Features and Advantages

Self-limiting heating elements
Small dimensions
No moving parts, no maintenance required, therefore long lifetime
Suitable for T4 and T3 classifications
Can be used for 110/240 VAC/DC

3 Remarks

All Cameo Heaters are designed around self-limiting heating elements. These semi-conductor elements are saving power consumption. Our Cameo Direct-heaters are designed to heat the installed equipment. If properly selected for freeze protection, no thermostat will be needed.
When required in other applications, e.g. analyzers, it is normal practice to use our Direct-heaters
in combination with our Fix-Therm96 thermostats (range from 10°C up to 135°C) or our FixTherm Inline Thermostat(range from 10°C up to 60°C).

4 Range

CT-1A	T3	ca. 115 °C Surface temperature*	250-25 Wat
CT-2A	T4	ca. 105 °C Surface temperature*	250-25 Wat
CT-3A	T4	ca. 90 °C Surface temperature*	250-25 Wat
CT-4A	T4	ca. 70 °C Surface temperature*	250-25 Wat

* these temperatures are measured at 20 °C ambient temperature.

Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting CT Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL CT-(*)A 0

5 Technical data

Power	250-25 Watt
Electrical cable	3 x 1 sqmm
Material cable	braided silicone, optional: non-braided cable
Standard length	ca. 1 mtr. Other lengths optional
Overall dimensions	88 x 70 x 35 mm (LxWxH)
Weight	ca. 550 g.
Material	black anodized aluminium
Protection class	II 2G Ex d IIC T4 or T3 II 2D Ex tD A21 IP66 T 135°C or T200 °C
Certification	KEMA 01ATEX2124X and IECEx DEK 11.0017
IP degree	IP 66
Voltage AC/DC	110/240
Ambient temp. range	– 60 °C … + 90 °C
