Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting LP Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL LP-()A, MODEL LP-0AHP Or MODEL LP-()S

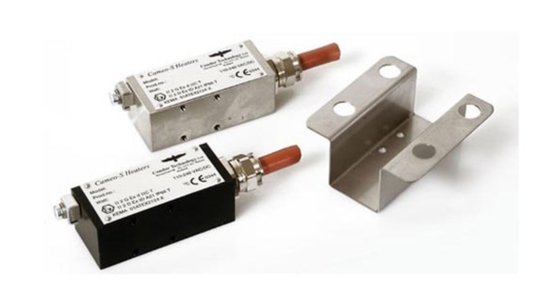

Large Image : Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting LP Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL LP-(*)A, MODEL LP-0AHP Or MODEL LP-(*)S

Product Details:

Place of Origin:	Mauritius/Netherlands
Brand Name:	condor
Certification:	KEMA 01ATEX2124X and IECEx DEK 11.0017
Model Number:	MODEL LP-()A, MODEL LP-0AHP or MODEL LP-()S

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	EURO/USD/HKD
Packaging Details:	carton
Delivery Time:	2-4 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Features:	No Moving Parts, No Maintenance Required, Therefore Long Lifetime	Ambient Temperature Range:	– 60°C…+ 90°C
Housing Material:	Black Anodized Aluminium (A) Or 316 Stainless Steel (S)	Explosion Proof Rating:	II 2G Ex D IIC T4 Or T3
Certifications:	KEMA 01ATEX2124X And IECEx DEK 11.0017	Voltage:	110/240 VAC/DC
Wattage:	100-10 Watt Or 200-20 Watt For High Power Model	Protection Level:	II 2D Ex TD A21 IP66 T 135°C Or T200 °C
Power Source:	Electric	Color:	Black
IP Degree:	IP 66

Description

1 Application

Direct-heaters for Hazardous locations, designed for direct mounting onto e.g. manifolds etc.

Freeze protection
Anti-condensation
Temperature maintenance

2 Features and Advantages

Self-limiting heating elements
Small dimensions
No moving parts, no maintenance required, therefore long lifetime
Suitable for T4 and T3 classifications
Can be used for 110/240 VAC/DC

3 Remarks

All Cameo Heaters are designed around self-limiting heating elements. These self-limiting semi-conductor elements are saving power consumption. Our Cameo Direct-heaters are designed to heat the installed equipment. If properly selected for freeze protection, no thermostat will be needed.
Optional body #5 : 4 holes diam. 5,2 mm. available in Aluminium and SS range
For easy mounting, at no extra charge
Alternative 316 Stainless Steel heaters can be delivered for the 100-10 Watt range.
Also possible is an aluminium body with four holes drilled through (body #5), for easy mounting.
Please see below for further technical data.

4 Range

LP-1A	T3	ca. 115 °C Surface temperature	100-10 Watt
LP-2A	T4	ca. 105 °C Surface temperature	100-10 Watt
LP-3A	T4	ca. 90 °C Surface temperature	100-10 Watt
LP-4A	T4	ca. 70 °C Surface temperature	100-10 Watt
LP-0AHP (High Power model)	T3	ca. 130 °C Surface temperature	200-20 Watt

* these temperatures are measured at 20 °C ambient temperature.

Direct Ex Heaters Explosion Proof Direct EX Heaters For Direct Mounting LP Direct Ex Heater ELECTRICAL DIRECT HEATER – MODEL LP-(*)A, MODEL LP-0AHP Or MODEL LP-(*)S 0

5 Technical data

Power	100-10 Watt or 200-20 Watt for High Power model
Electrical cable	3 x 1 sqmm, braided std.
Material cable	braided silicone, optional: non-braided cable
Standard length	ca. 1 mtr. Other lengths optional
Overall dimensions	78 x 30 x 34 mm (LxWxH)
Weight	Aluminium heater ca. 350 g., 316 Stainless Steel 360 g.
Material	black anodized aluminium (A) or 316 stainless steel (S)
Protection class	II 2G Ex d IIC T4 or T3 II 2D Ex tD A21 IP66 T 135°C or T200 °C
Certification	KEMA 01ATEX2124X and IECEx DEK 11.0017
IP degree	IP 66
Voltage	110/240 VAC/DC
Ambient temp. range	– 60 °C … + 90 °C
Optional body #5	4 holes diam. 5,2 mm. available in Aluminium range.
	for easy mounting, at no extra charge.

Additional Technical data for the High Power model LP-0AHP, T3, 130 °C:
Overall dimensions	88x36x36 mm (LxWxH)
Material	black anodized aluminium only
All other data	the same as standard model
