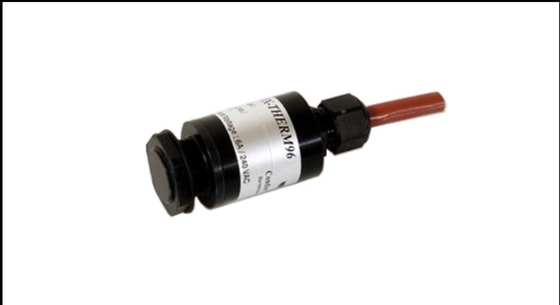

General Purpose Thermostats (Non-Ex) Thermostats For Non-Hazardous Areas FIX THERM 96 MODEL GTH Thermostat ELECTRICAL THERMOSTAT FIX THERM96 GENERAL PURPOSE MODEL GTH */*

Description

1 Application

For Non-Hazardous areas the General Purpose FixTherm96 thermostats are very suitable. Often used as maximum thermostat in instrumentation cabinets with space heating, to protect the equipment from overheating. Or as a minimum thermostat with space heating to protect from freezing.
In short, temperature maintenance.

• Prevention of overheating
• Freeze protection
• Anticondensation

2 Features and Advantages

• Setpoints up to 135°C
• Accurate set-point – (N.C. contact)
• Small hysteresis
• Anodized aluminium housing ( Stainless steel housing available)
• Inside grounding
• Can be used for 110 / 240 VAC/DC

3 Remarks

• The housing is made from anodized aluminium. When required in other applications, e.g. analyzers, it is normal practice to use our Space-Heaters in combination with our Fix-Therm96 thermostats (range from 10°C up to
  130°C).
• The FixTherm96 can also be used for cooling purposes e.g. FixTherm96 TH-10/5F (N.O. contact).

4 Range

• GTH-10/5 – going up with 5°C each time e.g. 10/5 – 15/10 – 20-15 etc. up to 130°C maximum.

5 Technical data
