Non Magnetic 1800um 70.9 Mil NDT Testing Equipment , Film Coating Thickness Gauge

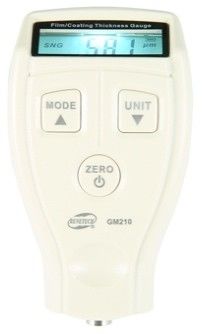

Film Coating Thickness Gauge GM210 Nondestructive Testing

This product is a portable coating thickness gauge for fast,accurate and nondestructive measurement of the thickness of non-magnetic coatings (such as paint, electroplated coating and film) on magnetic metal substrates. This product has seen wide application in manufacture, metal working, chemical industry,commodity inspection and other fields

• Film/Coating Thickness Gauge possesses the following features:

  1. Thickness measurement of non-magnetic surface
  coatings on magnetic metal substrates
  2. Single measurement, continuous measurement
  and differential measurement available
  3. Zero-point calibration, 2-point calibration and basic
  calibration available
  4. Metric and imperial units of measurement optional
  5. LCD backlight
  6. Automatic shutdown

• Specifications:

• Measurement ranges	0~1800μm/0~70.9 mil
  Resolution	0.1 μm/1μm/0.1mil
  Measurement error	±(3%H+1μm)
  Min. diameter of substrate	φ 12mm
  Min. thickness of substrate	0.5mm
  Min. curvature radius of convex substrate	2mm
  Min. curvature radius of concave substrate	11mm
  Power supply	2*1.5V AAA batteries
  Operating temperature range	0~40℃
  Operating humidity range	10~95%RH
  Overall dimensions	61.98*30.57*107.99mm
  Weight	63.98g( excluding of batteries)

•
