Lower Alarm LCD 5MHz NDT Testing Equipment

Lower Alarm LCD 5MHz NDT Testing Equipment

Lower Alarm LCD 5MHz NDT Testing Equipment
Lower Alarm LCD 5MHz NDT Testing Equipment Lower Alarm LCD 5MHz NDT Testing Equipment Lower Alarm LCD 5MHz NDT Testing Equipment

Large Image :  Lower Alarm LCD 5MHz NDT Testing Equipment

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: GM130
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Packaging Details: carton
Delivery Time: 5-8days
Payment Terms: T/T, Western Union
Detailed Product Description
Dimension: 72*29*146mm Battery: 1.5V AAA * 3 PCS
Weight: 223g Product Model: GM130
High Light:

5MHz NDT Testing Equipment


25mm NDT Testing Equipment


100mm ultrasonic metal thickness gauge

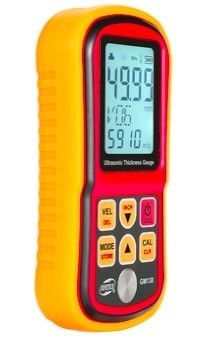

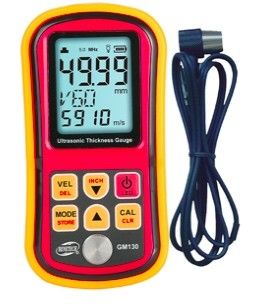

Ultrasonic Thickness Gauge GM130 Nondestructive Testing


This unit is an intelligent handheld product, which adopts ultrasonic measuring principle, and is controlled by micro processor, provides quick and precise measurement of thickness for most of industrial material. This unit is widely used in various precise measurement for different hardware /parts in industrial realm; one of its important application is to monitor the level of thickness-decreasing during operation of various and pressure container. Diffusely applied in manufacture fields, metal processing, and commercial inspection.

  • Ultrasonic Thickness Gauge possesses the following features:

    1.Upper/lower alarm setting

    2.Data storage/deletion

    3.Measuring sound velocity,

    4.LCD backlight display

    5.Low battery reminder

    6.Automatic shut-down

  • Description:

  • ①. Measuring range: 1.00 to 300.0mm(steel)

    ②. Accuracy:±(1%H+0.1mm)
    H denotes the measured thickness
    ③. Working frequency: 5MHz

    ④. Resolution:0.01mm(1.00 to 99.99mm)
    0.1mm(100 to 300mm)
    ⑤. Minimum limit for tube measuring(steel):
    φ15*2.0mm( φ6mm transducer)
    φ20*3.0mm( φ10mm transducer)

    ⑥. Sound velocity range:1000 to 9999m/s
    Thickness≤25mm, accuracy of velocity:±1.25mm/Hx100%
    Thickness≥25mm, accuracy of velocity: ±5%
    ⑦. Operating environment :
    Operation temperature: 0 to 40℃
    Relative Humidity: <90%
    Do not apply in violent vibration / erosive material
    Avoid impact and humidity
    ⑧. Power supply:1.5V AAA * 3 PCS

    ⑨. Weight:223g

    ⑩. Size: 72*29*146mm

  • Lower Alarm LCD 5MHz NDT Testing Equipment 0




    1. What is our company MOQ?

    As for now it is flexible, but it affects prices.


    2. What's the best payment term?

    Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.


    3.What's our company sample policy?

    We will send you some samples with pleasure,but you need to pay for it.


    4. What is our shipment and delivery term?

    Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

    Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
