Product Details:
Payment & Shipping Terms:
|
Weight: | 156.5g | Dimension: | 91.5x64.8x135mm |
---|---|---|---|
Power Supply: | 5V Power Adapter (no Battery Equipped) | PRODUCT NUMBER: | GM8802 |
High Light: | 5V Industrial Gas Leak Detector,2000ppm Industrial Gas Leak Detector,1PPM portable carbon monoxide meter |

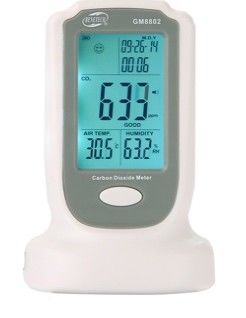

Carbon Dioxide Meter GM8802 Industrial Gas Detection
The carbon dioxide tester applies to the continuous online detection and site sound-light alarm of carbon dioxideconcentration in various industrial environments and specialenvironment, which functions as early warning for operationsafety on the dangerous site. Using the imported electrochemicalsensor and microcontroller technologies, the instrument isfeatured by stable signal, high precision and good repeatabilityand other merits, and its explosion-proof connection mode appliesto various dangerous sites. It can provide 24-hour continuousreal-time monitoring of indoor carbon dioxide concentration,display date, detection time, temperature and humidity data on the detection site automatically. The instrument is compatible withvarious control alarms, PLC, DCS and other control systems,which can realize site alarm, remote monitoring and alarmfunction at the same time
Carbon Dioxide Meter possesses the following features:
1. Charging
2. Sound-light alarm setting
3. Low battery indication
4. LCD backlight display
5. Temperature unit switch
6. Date and time setting
7. Supporting carbon dioxide gas detection
8. Maximum value, minimum value anddata hold
9.Date display format: YMD or MDYswitch
Detected gas | Carbon dioxide (CO2 ) in the Air | ||
Measuring range | 0-2000ppm | Minimum reading | 1ppm |
Resolution ratio | 1ppm | Basic error | ±(50ppm±3%) |
Response time | <30s | ||
Sensor type | NDIR CO2 gas sensor | ||
Working environment |
0-50℃, 32-122℉; 10-90%RH | ||
Storage environment |
-10-80℃, -14-176℉; 10-75%RH | ||
Power supply | 5V power adapter (no battery equipped) | ||
Dimension | 91.5x64.8x135mm | Weight | 156.5g |
