Power Supply: | 9V Battery | Measurement Accuracy: | ±5%±2digits |
---|---|---|---|
Weight: | 229g (not Including Battery) | Product Model: | Vibration Meter GM63B |
High Light: | Vibration Meter NDT Testing Equipment,GM63B Vibration Meter,10Hz NDT Testing Equipment |

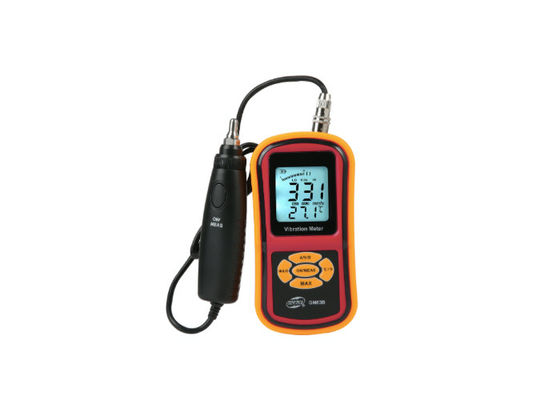

Vibration Meter GM63B
This product adopts piezoelectric effect of artificial polarized ceramic for design. it is suitable for monitoring of all kinds of vibrating mechanical facility, specially the vibration measurement of rotating and reciprocating machinery. The unit can measure acceleration, velocity and displacement, which is widely used in mechanical manufacture, electric power metallurgy and general aviation etc. Field.
Features of Vibration Meter:
Vibration Meter possesses the following features:
1.LCD display measurement result and conditions directly
2.Measures acceleration (m/s² peak), velocity (mm/s ms),
and displacement (mm p-p)
3.Selective vibration characteristic
4.Uses hi- sense of vibration sensor, measuring accurately
5.Equipped two probes (S and L) to adapt the different
measurement requirement
6.Provides a magnetic probe to fit the condition uneasy hold
on by hand
7.Low battery indication
8.Auto turn off function
9.LCD back light function
10.Maximum value hold function
11.Temperature unit C°/F°selection
Specifications of Vibration Meter:
Technical parameter | Technical specification |
Vibration pickup | Piezoelectric ceramic accelerometer (shear-type) |
Measurement range of acceleration |
0.1~199.9m/s peak |
Measurement range of velocity |
0.1~199.9mm/s rms |
Measurement range of displacement |
0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s² |
Measurement accuracy | ±5%±2digits |
Measurement frequency range of acceleration |
10Hz~1KHz (LO) 1KHz~15KHz (HI) |
Measurement frequency range of velocity |
10Hz~1KHz (LO) |
Measurement frequency range of displacement |
10Hz~1KHz (LO) |
Displays update cycle | 1 seconds |
LCD display | 3 1/2 digits display |
Single output | AC output 2 V peak (display full scale) Load impedance 10KΩor more earphones can be connected |
Power supply | 9V battery |
Stand-by current | ≤15μA |
Operating current | ≤25mA |
Battery life | 20 H continuous use |
Auto power-off function | Turns off automatically after 60 seconds |
LCD backlight function | 7 seconds |
Operating temperature range | 0~40℃ |
Operating humidity range | 30~90%RH |
Low battery indication | 6.4V±0.2V |
Dimensions | 72x35x145mm |
Weight | 229g (not including battery) |
Temperature range | -10℃~80℃ |
Temperature accuracy | ±2℃ |
