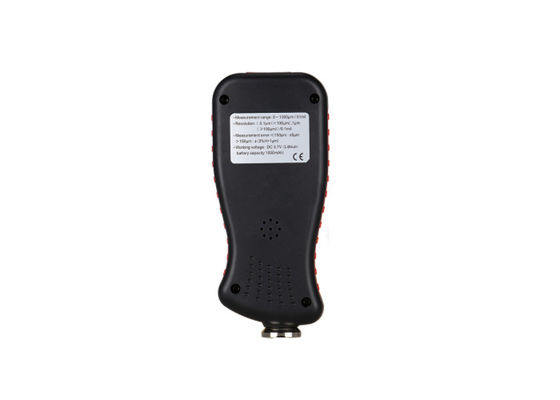

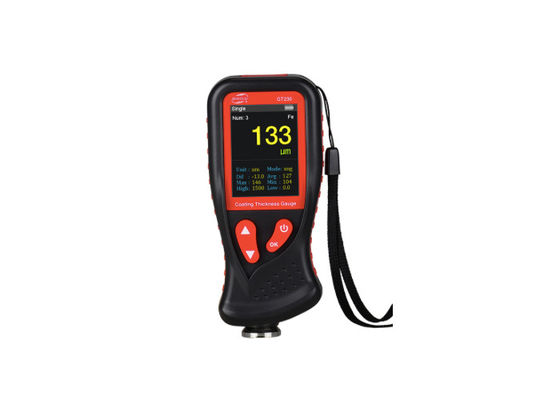

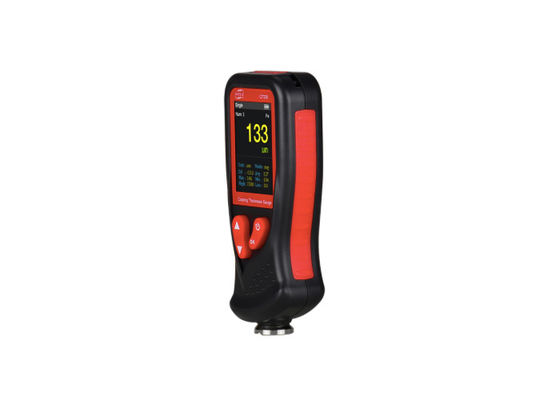

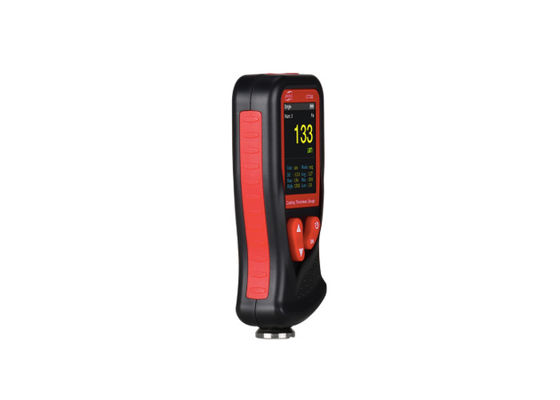

GT230 NDT Testing Equipment Film Coating Thickness Gauge

Film Coating Thickness Gauge GT230

This product is a color-screen portable coating thickness gauge with highdefinition display, which can quickly, non-destructively and accurately me-asure non-magnetic coating thickness on magnetic metal substrates and non-metallic coating thickness measurement on non-magnetic metal sub-strates. At the same time it can automatically identify magnetic metal substrate and non-magnetic metal substrate, and is widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and other testing areas.

Features of Film Coating Thickness Gauge:

• This Coating Thickness Gauge thermometer possesses the following features:

  1. Menu operation and color-screen HD display.

  2. Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate.

  3. Two measurement methods: single measurement, continuous measurement.

  4. Basic calibration and Zero-point calibration available.

  5. Metric/imperial unit and storage function.

  6. Screen rotation, charge protection, multi-interface displays, screen brightness selection.

  7. Automatic shutdown.

•

• Specifications of Film Coating Thickness Gauge:

• Measurement range	0 ~ 1300um/51mil
  Resolution	( 0.1μm(<100μm),1μm( ≥100μm))/0.1mil
  Measurement error	≤150μm ±5μm
  	＞150μm ±(3%H+1μm)
  Minimum diameter of magnetic metal substrate	12mm
  Minimum thickness of magnetic metal substrate	0.5mm
  Minimum radius of curvature for magnetic convex substrate	2mm
  Minimum radius of curvature for magnetic concave substrate	11mm
  Minimum diameter of non-magnetic metal substrate	50mm
  Minimum diameter of non-magnetic metal substrate	50mm
  Minimum thickness of non-magnetic metal substrate	0.5mm
  Working voltage	DC 3.7V (Lithium battery capacity 1000mAh)
  Size	52.9*26*117mm
  Weight	102.4g(including battery)



• FAQ



  1. What is our company MOQ?

  As for now it is flexible, but it affects prices.



  2. What's the best payment term?

  Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.



  3.What's our company sample policy?

  We will send you some samples with pleasure,but you need to pay for it.



  4. What is our shipment and delivery term?

  Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

  Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
