Reset USB Port Data Hold GM520 Pressure Manometer

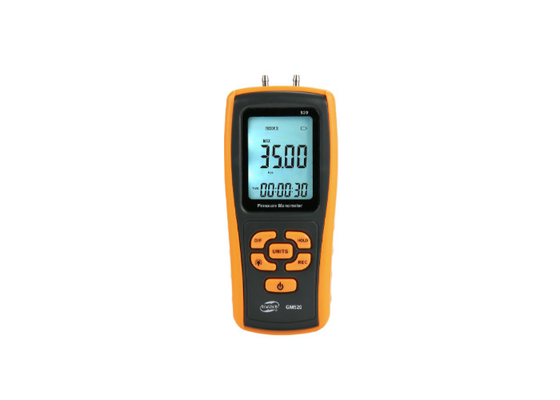

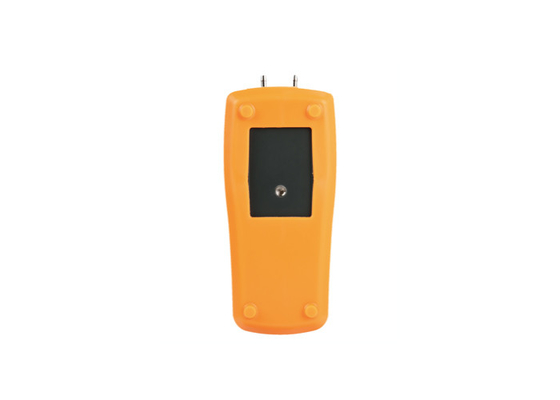

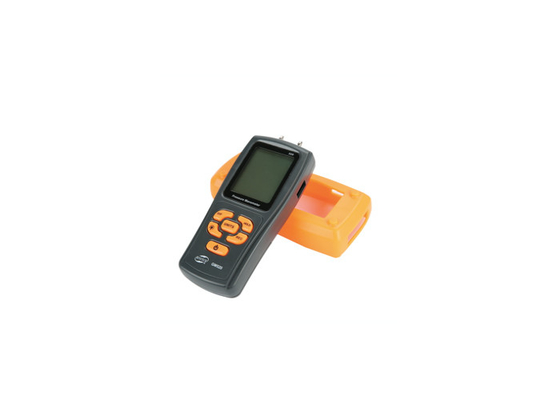

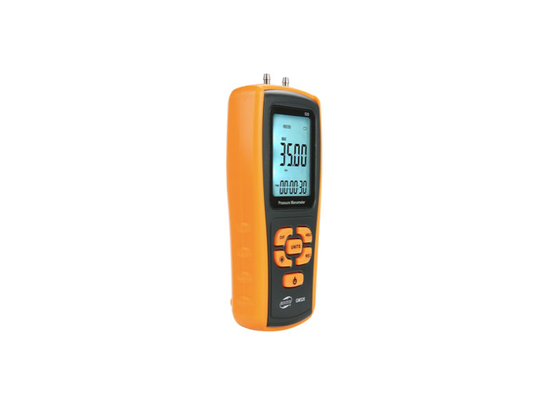

Pressure Manometer GM520

There are following 11 selectable pressure units: bar,mbar,kPa,kgf/cm²,mmHg,cmH2O,Ozf/in²,psi,inHg,inH2O,ftH2O. This unit features data save and adjustment, automatic turn-off, connecting with PC to read and export the data with a USB wire.

Features of Pressure Manometer:

• Pressure Manometer possesses the following features:

  1.Large LCD

  2.Data hold

  3.With differential mode and record mode

  4.USB port

  5.Reset and data adjustment

  6.Low battery indication and automatic power off

•

• Specifications of Pressure Manometer:

• Measuring range	±35kPa
  Accuracy	±0.3%FSO(25℃)
  Repeatability	±0.2%(Maximum＋/－0.5 FSO)
  Linearity/hysteresis	±0.29 FSO
  Response	Typical 0.5s
  Low battery indication	Yes
  Up overload indication	Err1
  Down overload indication	Err2
  Operating temperature	0~50℃
  Storage temperature	-10~60℃
  Power supply	1.5V AAA battery*4
  USB communication	Yes





  Unit	Range	Resolution	Maximum pressure
  bar	0.350	0.001	1.500
  mbar	350.0	0.1	1500.0
  kPa	35.00	0.01	150
  kgf/cm²	0.356	0.001	1.529
  mmHg	262.5	0.1	1125.0
  cmH2O	356.6	0.1	1528.5
  Ozf/in²	81.20	0.01	348.00
  psi	5.076	0.001	21.755
  inHg	10.33	0.01	44.29
  inH2O	140.3	0.1	601.5
  ftH2O	11.69	0.01	50.10
  Environmental temperature compensation



• FAQ



  1. What is our company MOQ?

  As for now it is flexible, but it affects prices.



  2. What's the best payment term?

  Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.



  3.What's our company sample policy?

  We will send you some samples with pleasure,but you need to pay for it.



  4. What is our shipment and delivery term?

  Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

  Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
