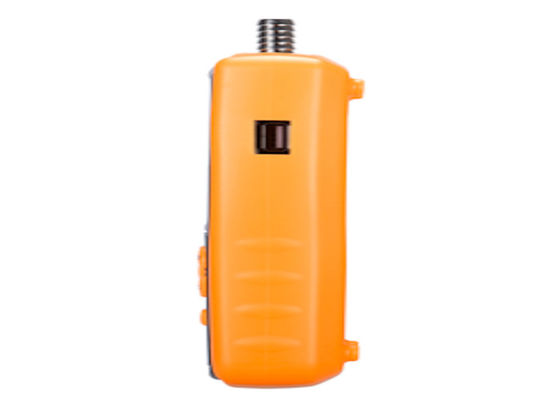

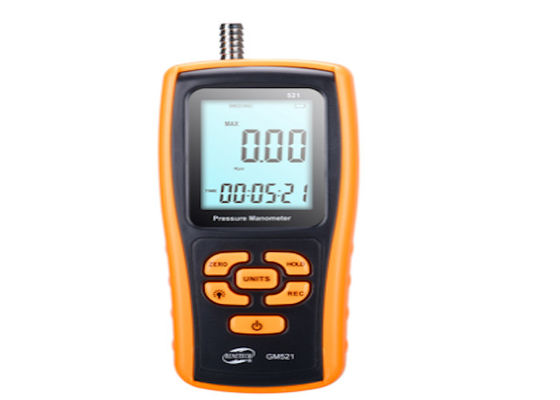

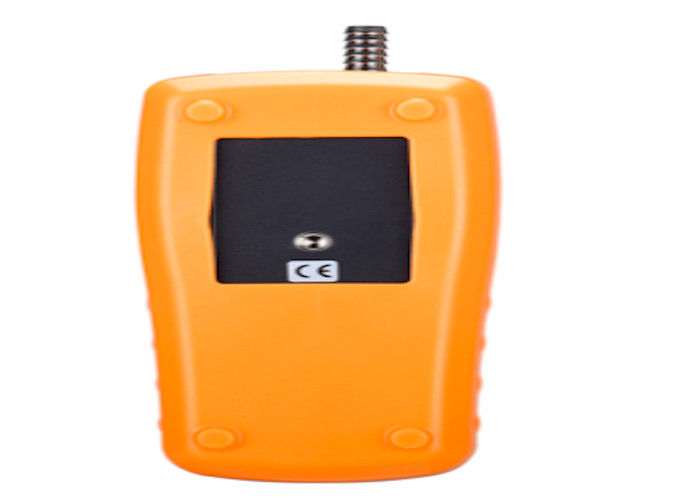

GM522 NDT Testing Equipment 100kPa Manometer Pressure Gauge

Pressure Manometer GM522 Nondestructive Testing

There are following 11 selectable pressure units: bar,mbar,kPa,kgf/cm²,mmHg,cmH2O,Ozf/in²,psi,inHg,inH 2 O,ftH 2 O. This unit features data save and adjustment, automatic turn-off, connecting with PC to read and export the data with a USB wire.

• pressure Manometer possesses the following features:

  1.Large LCD
  2.Data hold
  3.With differential mode and record mode
  4.USB port
  5.Reset and data adjustment
  6.Low battery indication and automatic power off

•

• Specifications of Pressure Manometer:

• Measuring range	±100kPa
  Accuracy	±0.3%FSO(25℃)
  Repeatability	±0.2%(Maximum＋/－0.5%FSO)
  Linearity/Hysteresis	±0.29%FSO
  Response	Typical 0.5s
  Low battery indication	Yes
  Up overload indication	Err1
  Down overload indication	Err2
  Operating temperature	0~50℃
  Storage temperature	-10~60℃
  Power supply	1.5V AAA battery*4
  USB communication	Yes





  Model	Unit	Range	Resolution	Maximum pressure
  GM522	bar	1.000	0.001	4.000
  GM522	mbar	1000	0.1	4000
  GM522	kPa	100.0	0.01	400.0
  GM522	kgf/cm²	1.019	0.001	4.078
  GM522	mmHg	750.0	0.1	3000
  GM522	cmH2O	1019	0.1	4078
  GM522	Ozf/in²	227.5	0.01	910.2

•
