Typical Battery Life: | Laser Off:12 Hrs | Product Model: | Infrared Thermometer GM531 |
---|---|---|---|
Distance To Spot Size: | 12:1 | Emissivity: | 0.10~1.00optional (0.95 Preset) |
High Light: | GM531 Infrared Forehead Thermometer,5um Response Infrared Forehead Thermometer,Non Condensing Infrared Forehead Thermometer |

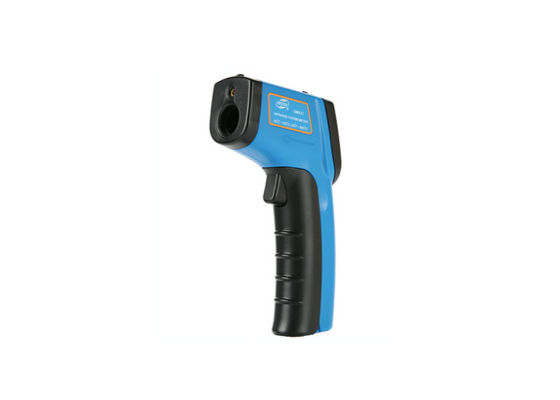

Infrared Thermometer GM531 Temperature Measurement Series
This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display.
The Optics collected the infrared energy emitted by object and focus onto the Sensor.
Then the sensor translates the energy into an electricity signal. This signal will be
turned out to be digital shown on the LCD after the signal amplifier and
processing circuit.
Infrared thermometer possesses the following features:
1.℃ / ℉ temperature unit conversion
2.Data retention
3.Positioning laser
4.LCD backlight
5.Max / Min display
6.Self-calibration
7.Ambient temperature view
8.Automatic shut-down
Temperature range | GM531: -50~530℃ (-58~986℉) |
Accuracy | 0~400℃/530 (32~752℉/986 ) : ±1.5℃(±2.7℉) or ±1.5% -50~0℃(-58~32℉):±3℃ (±5℉) Whichever is greater |
Repeatability | 1% of reading or 1℃ |
Response time | 500 mSec, 95% response |
Spectral response | 5~14 um |
Emissivity | 0.10~1.00optional (0.95 Preset) |
Distance to Spot size | 12:1 |
Operating Temperature | 0 ~40℃ (32 ~ 104℉) |
Operating Humidity | 10~95%RH non-condensing, up to 30℃(86℉) |
Storage Temperature | -20 ~ 60℃ (-4~140℉) |
Power | 3V (1.5V AAA * 2) |
Typical battery life (Alkaline) | Laser Models:12 hrs |
