| Response Time: | 500 MSec, 95% Response | Power: | 1.5V AAA*2 Battery |
|---|---|---|---|
| Storage Temperature: | -20 ~ 60℃ (-4~140℉) | Distance Spot Ratio: | 12:1 |
| Weight: | 222g | Product Model: | GM333 |
| High Light: | Non Contact Industrial Digital Thermometer,GM333 Industrial Digital Thermometer,GM333 industrial non contact thermometer |
||
500 MSec, 95% Response 111*50*172mm Non-Contact Infrared Thermometer Infrared Thermometer GM333 1.5V AAA*2 Battery

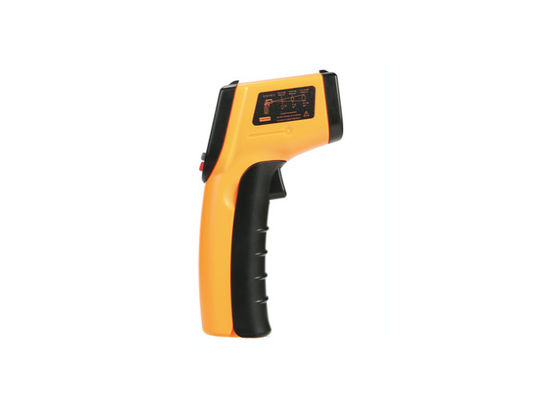

Infrared Thermometer GM333
This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics
collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the
energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after
the signal amplifier and processing circuit.
Infrared thermometer possesses the following features:
1.High-definition color display
2.℃ / ℉ temperature unit conversion
3.Data retention
4.Positioning laser
5.LCD backlight
6.Automatic shut-down
Specifications of Infrared thermometer GM333
| Temperature range | -50 ~ 400℃ (-58 ~ 752℉) |
| Accuracy | 0℃~400℃ (32℉~752℉) :±1.5℃(±2.7℉) or±1.5% -50℃~0℃(-58℉~32℉): ±3℃ (±5℉) Whichever is greater |
| Resolution | 0.1℃ or 0.1℉ |
| Repeatability | 1% of reading or 1℃ |
| Response time | 500 mSec, 95% response |
| Spectral response | 5-14 um |
| Emissivity | 0.95 Preset |
| Distance to Spot size | 12:1 |
| Operating Temperature | 0 ~40℃ (32 ~ 104℉) |
| Operating Humidity | 10~90%RH non-condensing, up to 30℃(86℉) |
| Storage Temperature | -20 ~ 60℃ (-4~140℉) |
| Power | 1.5V AAA*2 battery |
| Typical battery life | Laser off:12 hrs |
