| Response Time: | 500 MSec, 95% Response | Power: | 3V (1.5V AAA * 2) |
|---|---|---|---|
| Storage Temperature: | -20 ~ 60℃ (-4~140℉) | Distance Spot Ratio: | 12:1 |
| Weight: | 200g | Product Model: | GM333A |
| High Light: | 500 MSec Industrial Non Contact Thermometer,95% Industrial Non Contact Thermometer,GM333A infrared automotive thermometer |
||
500 MSec, 95% Response 12:1 Non-Contact Infrared Thermometer Infrared Thermometer GM333A 3V (1.5V AAA * 2)

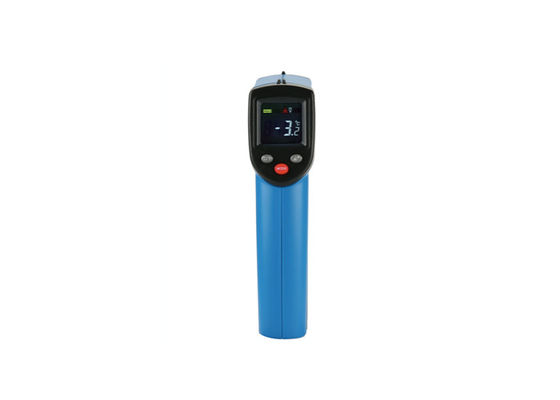

Infrared Thermometer GM333A
This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics
collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the
energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the
signal amplifier and processing circuit.
Infrared thermometer possesses the following features:
1.High-definition color display
2.℃ / ℉ temperature unit conversion
3.Data retention
4.Positioning laser
5.LCD backlight
6.Max / Min display
7.Self-calibration
8.Ambient temperature view
9.Automatic shut-down
Specifications of Infrared thermometer GM333A
| Temperature range | -50~400℃ (-58~752℉) |
| Accuracy | 0~530℃(32~986℉) :±1.5℃(±2.7℉) or±1.5% -50~0℃(-58~32℉):±3℃ (±5℉) Whichever is greate |
| Repeatability | 1% of reading or 1℃ |
| Response time | 500 mSec, 95% response |
| Spectral response | 5~14 um |
| Emissivity | 0.10~1.00optional (0.95 Preset) |
| Distance to Spot size | 12:1 |
| Operating Temperature | 0 ~40℃ (32 ~ 104℉) |
| Operating Humidity | 10~95%RH non-condensing, up to 30℃(86℉) |
| Storage Temperature | -20 ~ 60℃ (-4~140℉) |
| Power | 3V (1.5V AAA * 2) |
| Typical battery life (Alkaline) | Laser Models:12 hrs |
