| Dimension: | 111*50*172mm | Power: | 9V Alkaline Or NiCd Battery |
|---|---|---|---|
| Storage Temperature: | -20℃ ~ 60℃ (-4℉~140℉) | Distance Spot Ratio: | 12:1 |
| Weight: | 222g | Product Model: | GT750 |
| High Light: | GT750 Industrial Digital Thermometer,12/1 Industrial Digital Thermometer,GT750 automotive digital thermometer |
||
111*50*172mm 12:1 Non-Contact Infrared Thermometer Infrared Thermometer GT750 3V (1.5V AAA * 2)

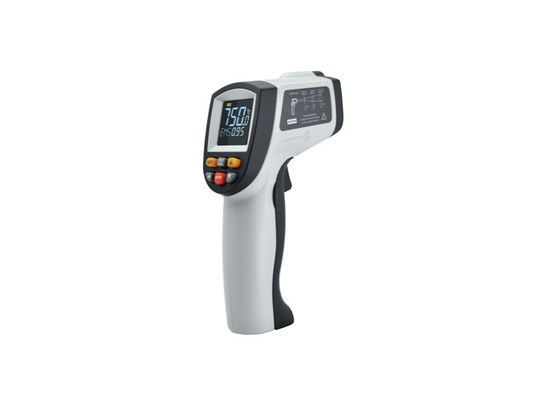

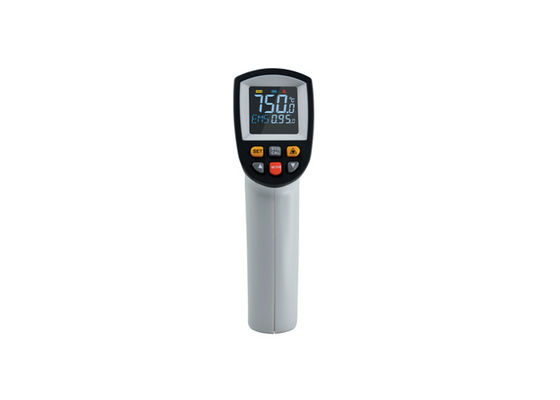

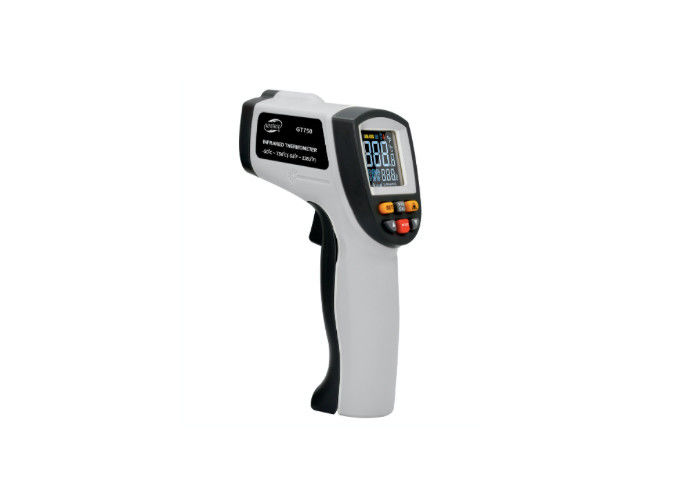

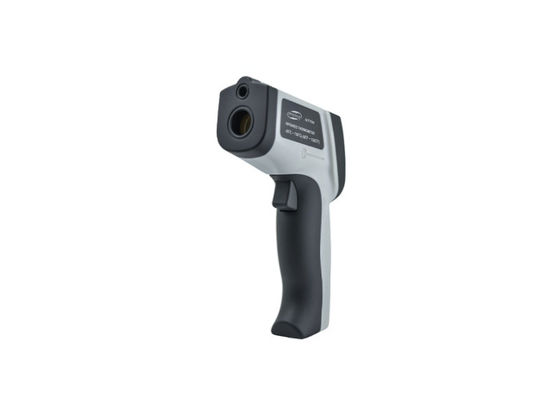

Infrared Thermometer GT750
This infrared thermometer is used for measuring the temperature of the object's surface, which is applicable for various hot, hazardous or hard-toreach objects without contact safely and quickly. This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the signal amplifier and processing circuit.
Infrared thermometer possesses the following features:
1.℃ / ℉ temperature unit conversion
2.Positioning laser
3.Data retention
4.Max / Min / Difference / Average display
5.High / low temperature alarm settings
6.Measurement data storage
7.Automatic shut-down
Specifications of Infrared thermometer GT750
| Temperature range | -50℃~750℃ (-58℉~1382℉) |
| Accuracy | 0℃~750℃(32℉~1382℉) :±1.5℃(±2.7℉) or±1.5% -50℃~0℃(-58℉~32℉):±3℃ (±5℉) Whichever is greater |
| Resolution | 0.1℃ or 0.1℉ |
| Repeatability | 1% of reading or 1℃ |
| Response time | 500 mSec, 95% response |
| Spectral response | 8um~14 um |
| Emissivity | 0.10~1.00 Adjustable (0.95 Preset) |
| Distance to Spot size | 12:01 |
| Operating Temperature | 0℃ ~40℃ (32℉ ~ 104℉) |
| Operating Humidity | 10%RH~95%RH non-condensing, up to 30℃(86℉) |
| Storage Temperature | -20℃ ~ 60℃ (-4℉~140℉) |
| Power | 9V Alkaline or NiCd battery |
| Typical battery life (Alkaline) | Non-laser mode: 22 hrs; Laser Models:12 hrs |
| Weight | 222g |
| Dimension | 111*50*172mm |
