| Dimension: | 141*60*200mm | Power: | 9V Alkaline Or NiCd Battery |
|---|---|---|---|
| Storage Temperature: | -20℃ ~ 60℃ (-4℉~140℉) | Distance Spot Ratio: | 50:1 |
| Weight: | 270g | Product Model: | GM1350 |
| High Light: | GM1350 Non Contact Infrared Thermometer,9V Non Contact Infrared Thermometer,GM1350 infrared thermometer industrial |
||
141*60*200mm 270g Non-Contact Infrared Thermometer Infrared Thermometer GM1350 9V Alkaline Or NiCd Battery

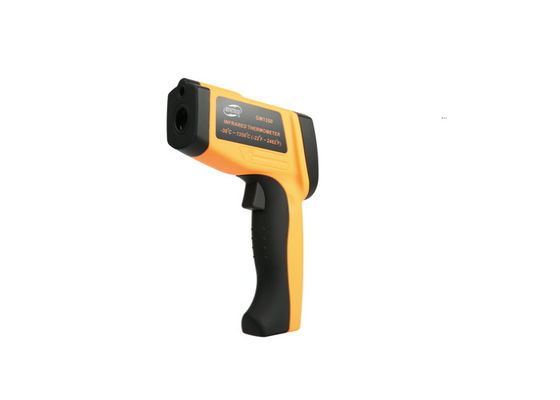

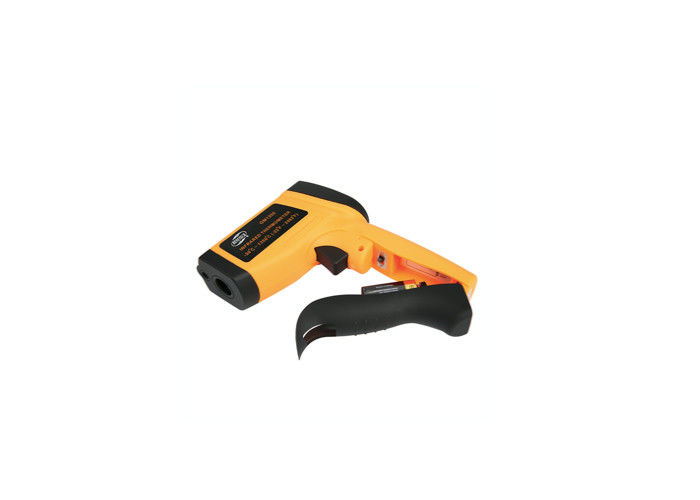

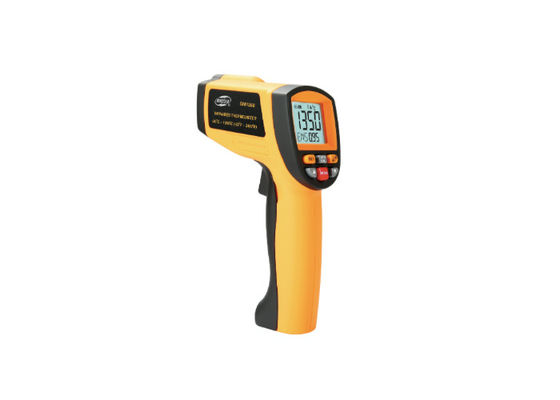

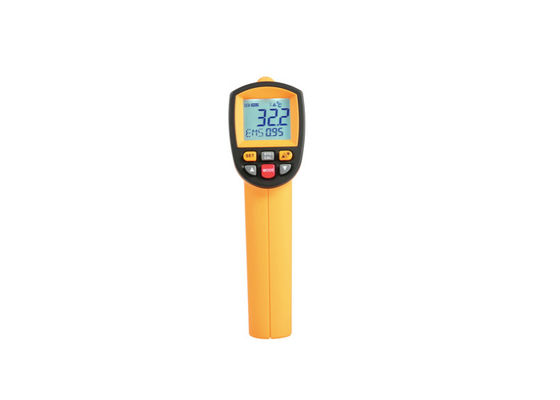

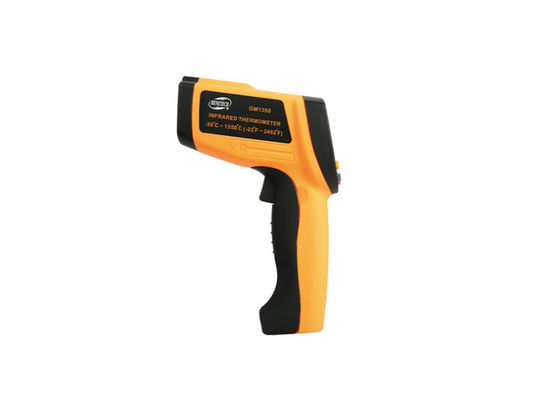

Infrared Thermometer GM1350
This unit consist of Optics, Temperature Sensor Signal amplifier, Processing circuit and LCD Display. The Optics
collected the infrared energy emitted by object and focus onto the Sensor. Then the sensor translates the
energy into an electricity signal. This signal will be turned out to be digital shown on the LCD after the
signal amplifier and processing circuit.
Infrared thermometer possesses the following features:
1.℃ / ℉ temperature unit conversion
2.Data retention
3.Positioning laser
4.LCD backlight
5.Automatic shut-down
6.Max / Min / Difference / Average display
7.High / low temperature alarm settings
8.Measurement data storage
Specifications of Infrared thermometer GM1350
| Temperature range | -30~1350℃ (-22~2462℉) |
| Accuracy | 0~1350℃(32~2462℉) :±1.5℃(±2.7℉) or±1.5% -30~0℃(-22~32℉):±3℃ (±5℉) Whichever is greater |
| Resolution | 0.1℃ or 0.1℉ |
| Repeatability | 1% of reading or 1℃ |
| Response time | 500 mSec, 95% response |
| Spectral response | 8-14 um |
| Emissivity | 0.10~1.00 Adjustable (0.95 Preset) |
| Distance to Spot size | 50:1 |
| Operating Temperature | 0 ~40℃ (32 ~ 104℉) |
| Operating Humidity | 10~95%RH non-condensing, up to 30℃(86℉) |
| Storage Temperature | -20 ~ 60℃ (-4~140℉) |
| Power | 9V Alkaline or NiCd battery |
| Typical battery life (Alkaline) |
Non-laser mode: 22 hrs; Laser Models:12 hrs |
| Weight | 270g |
| Dimension | 141*60*200mm |
