Product Details:
Payment & Shipping Terms:
|
Response Time: | 500 MSec, 95% Response | Power: | 9V Alkaline Battery Or 9V 500mA DC IN |
---|---|---|---|
Storage Temperature: | -20 ~ 60℃ (-4~140℉)≤85%, Without Battery | Distance Spot Ratio: | 80:1 |
Weight: | 270g | Product Model: | GM2200 |
270g 141 x 60 x 220mm Non-Contact Infrared Thermometer Infrared Thermometer GM2200 9V Alkaline battery or 9V 500mA DC IN

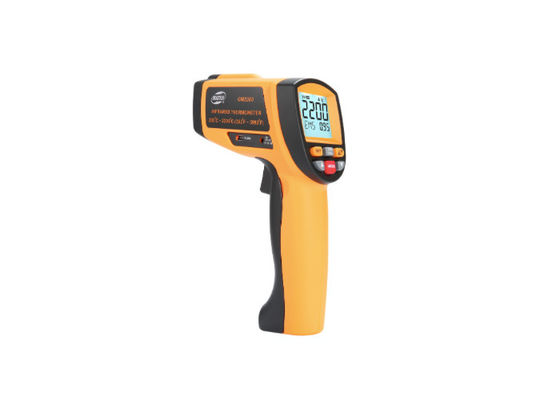

Infrared Thermometer GM2200
This unit consists of optics system, photoelectric sensor, signal amplifier, signal process circuit and LCD. The optics
system collects the infrared energy emitted by object and focus onto the sensor. Then the sensor translates the
energy into electricity signal which will be turned out to be readings shown on the LCD by the signal amplifier
and signal process circuit. Equipped with RS232 data export function, this product is surely to be a great
help to your work.
Infrared thermometer possesses the following features:
1.Max / Min / Difference / Average display
2.℃ / ℉ temperature unit conversion
3.Data retention
4.Positioning laser
5.LCD backlight
6.Measurement data storage / view / clear
7.High / low temperature alarm settings
8.Automatic shut-down
9.RS232 interface
Specifications of Infrared thermometer GM2200
Temperature range | 200 ~ 2200℃ (392 ~ 3992℉) |
Accuracy | 200℃(392℉)~ 450℃(842℉): ±2℃ or ±2% 450℃(842℉)~ 1100℃(2012℉): ±3℃or ±3% 1100℃(2012℉)~ 2200℃(3992℉): ±4℃or ±3% whichever is bigger |
Repeatability | 1% of reading or 1℃ |
Time response | 500 mSec, 95% response |
Spectral response | 900~1700 nm |
Emissivity | 0.10-1.00adjustable (pre-set 0.95) |
Ambient operation range | 0 ~40℃ (32 ~ 104℉) |
Relative humidity | 10-80% RH noncondensing |
Storage | -20 ~ 60℃ (-4~140℉)≤85%, without battery |
Weight / Size | 270G(without battery) ; 141 x 60 x 220mm |
Power | 9V Alkaline battery or 9V 500mA DC IN |
Battery life(alkaline) | Laser Models:10 hrs |
Distance to spotsize | 80:1 |
