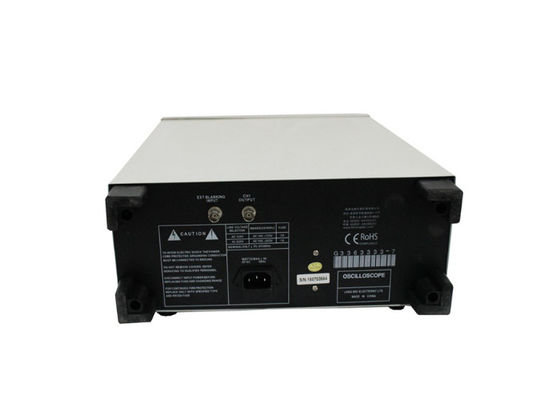

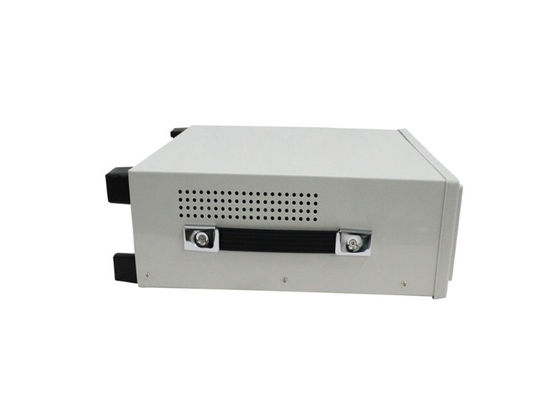

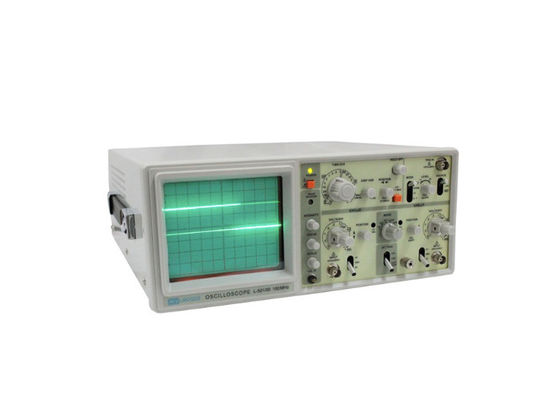

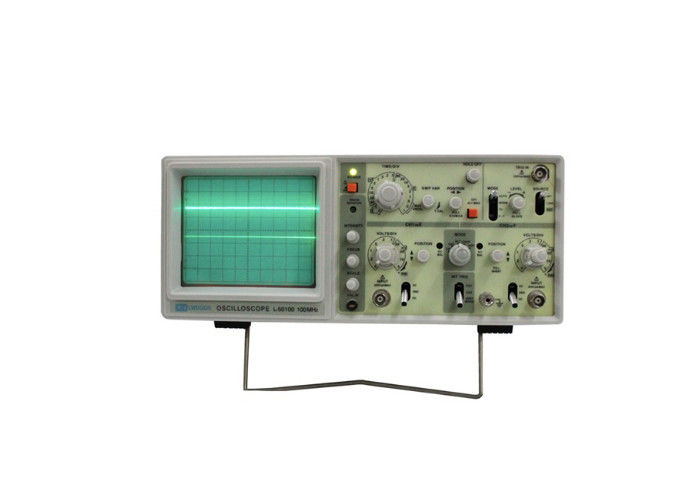

100 mhz analog oscilloscope
Product serial number L-50100
Features:
Dual channels/dual traces, X-Y mode
6" display, high brightness oscilloscope tube
High sensitivity triggering, up to 1mV/division clearer display than ordinary oscilloscope
TV synchronous separation circuit to observe stable TV signal
Triggering mode: AUTO/NORM/AV-V/AV-H
Vertical: ALT/CHOP/ADD
X-x10/Y-x5
Polarity reversal
CH1 Sync output
Power supply: AC 220V ADN (110V optional)
Specifications of oscilloscope L-50100
| CRT |
6 inches rectangular screen with internal graticule, 8*10div (1 div=1cm).Vertical deflection |
| Display mode |
CH1, CH2, CH3, ADD, ALT, and CHOP |
| Deflection factor |
5mV/div to 5V/div±3 %,( 1mV/div to 1V/div±5% at*5), 10steps. |
| Rise time |
≤17.5ns |
| Max. Input voltage |
40v (DC+AC peak value) when≤1KHz |
| Input coupling |
AC, DC, Grounding |
| Polarity selection |
±( CH2 only) |
Horizontal deflection
Display mode: 1, 10, X-Y
Time Base: 0.2us/div to 0.5s/div, 20 range
Sweep expansion width:*10
Accuracy: ±3%
Triggering System:
Triggering mode: NORM, AUTO, TV-V, TV-H
Triggering sourde: CH1, CH2, LINE, EXT
Sensitivity and Frequency: Auto: 20Hz---100MHz (VERT)
Norm: 0.5div int, 0.8Vp—p EXT
0.5div INT, 0.5vp---PEXT
TV-H: At least 1 div or 1V p-p,
Input impedance: 1MΩ
X-Y Operation
X-Y Phase difference: ≤3o,DC--50KHz
Others:
Calibration waveform: Frequency: 1KH 20%, Voltage: 0.5v1%
Power supply: AC 220V/110V±10%, 50/60Hz
Dimensions: 370*310*130mm Weight:8.5-9.5KG
