| Input Voltage: | 220V±10%@50Hz, Or 110V±10%@60Hz, Manual Switching | Dimensions: | 285x128x145mm |
|---|---|---|---|
| Storage Conditions: Temperature: | -20 ° C ~ 80 ° C | Working Environment: Temperature: | -10 ° C ~ 40 ° C |
| Working Environment Relative Humidity: | <80% | Model: | PS305DF |
| High Light: | 30v 5A DC Linear Power Supply,4 LED DC Linear Power Supply,4 LED 30v 5a dc power supply |
||

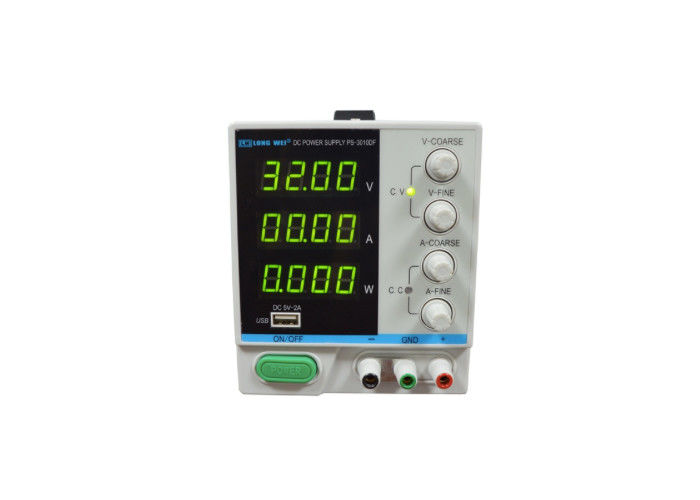

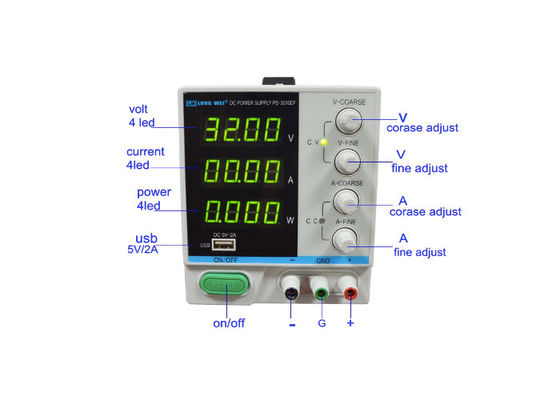

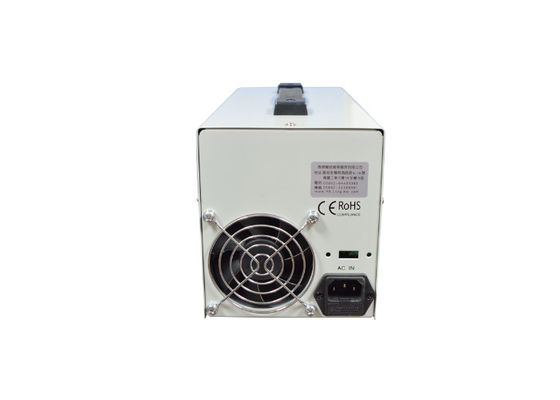

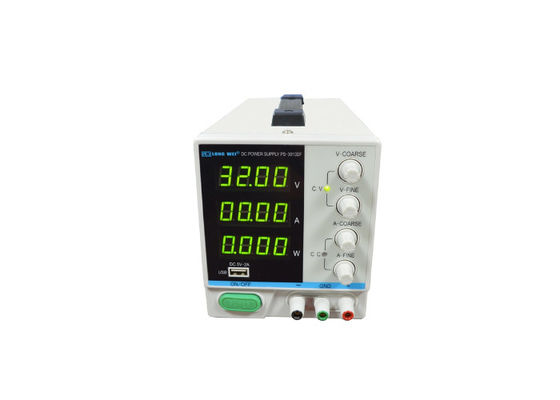

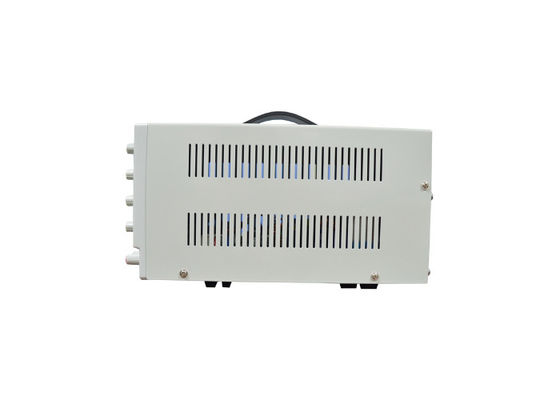

PS305DF 30v 5A new come dc power supply
0-30V/0-5A variable
4Led / light weight
Input:110V/220V switch
Feature:
1.USB interface 5V/2A, Power display window show.
2.Single phase, single output dc power supply
3.Constant voltage and constant current operation (C.C and C.V. automatic conversion)
4.Both current and voltage can be adjusted from 0 to rated value
5.4LED digital display
6.Intelligent temperature control fan to help power supply cooling fast
7.Perfect protection,Current limit,OV,Over load,Over temperature.
Specifications:
| Input voltage | 220V±10%@50Hz, or 110V±10%@60Hz, manual switching |
| Working environment | |
| Temperature | -10 ° C ~ 40 ° C |
| Relative humidity | <80% |
| Storage conditions | |
| Temperature | -20 ° C ~ 80 ° C |
| Relative humidity | <70% |
| Dimensions | 285x128x145mm |
| power supply effect | CV≤0.1%+10mV; CC≤0.1%+10mA |
| Load effect | CV≤0.1%+5mV;CC≤0.1%+10mV |
| Ripple & noise | CV≤10mV r.m.s.;CC≤20mA r.m.s. |
| display mode accuracy | 4-digit LED digital display, display accuracy ±0.1% ± 1 word |
| Packing | 4pcs/carton/15kg/41*38*45cm |
| Model | Voltage | Current | Display | Accuracy |
| PS-303DF | 0-32V | 0-3A | 4LED | ±0.1%±1 digit |
| PS-305DF | 0-32V | 0-5A | 4LED | ±0.1%±1 digit |
| PS-3010DF | 0-32V | 0-10A | 4LED | ±0.1%±1 digit |
| PS-6403DF | 0-65V | 0-3A | 4LED | ±0.1%±1 digit |
| PS-6405DF | 0-65V | 0-5A | 4LED | ±0.1%±1 digit |
| PS-1002DF | 0-102V | 0-2A | 4LED | ±0.1%±1 digit |
| PS-1003DF | 0-102V | 0-3A | 4LED | ±0.1%±1 digit |
