| Sampling Rate:: | ≤ 0.5s | Demension: | 43*155*106mm |
|---|---|---|---|
| Sensor: | Built-in Laser | Firing Rate: | 0.1-1 Adjustable |
| Weight: | 210g (including Battery) | Product Model: | TM550 Vici |
| High Light: | TM550 IR Temperature Thermometer,Industrial IR Temperature Thermometer,TM550 industrial ir thermometer |
||

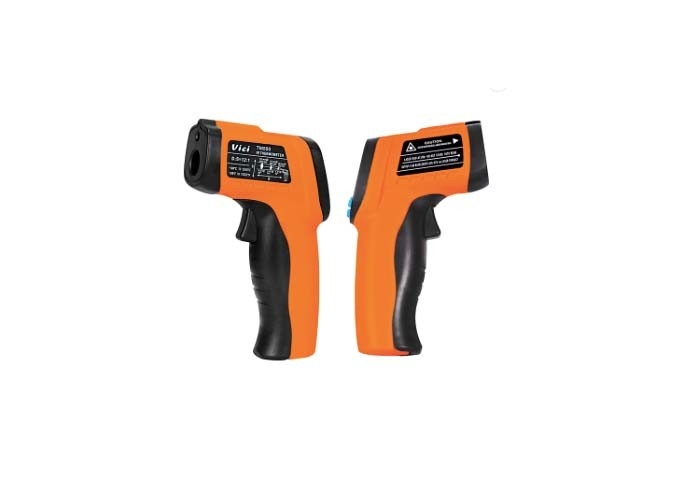

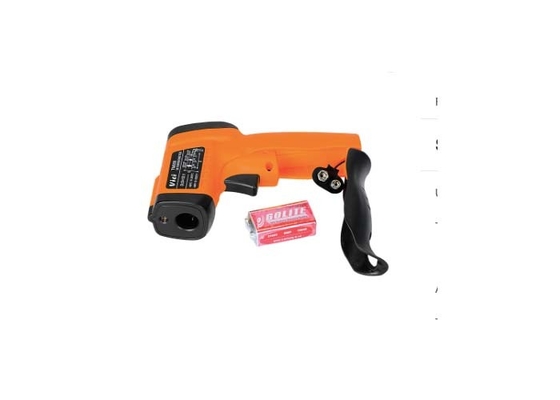

TM550 Thermometer Industrial Using Thermometer IR Temperature Testing Thermometer
This TM550 is a professional handheld non-contact infrared thermometer, with advantages of simple structure, compact design, convenient operation, high measuring accuracy, and wide measuring range. It has the function of laser sight, backlight LCD display, over temperature alarm, adjustable emission rate and automatic power off. It can take quick and accurate measurement on the object temperature when it is directed to the object. An ideal temperature testing meter in kinds of application, especially industrial field.
Features of TM550 IR Thermometer:
Environment Info
The ambient temperature of this thermometer is 10℃~30℃.
The advised storage temperature of this thermometer is -10℃ ~40℃.
The advised relative humidity for storing is≤ 90%.
This instrument shall not be immersed in water or exposed to direct sulight.
Heavy drop or collision will cause damage to the instrument.
Please do not charge the battery or throw it into fire.
Please take out the battery if the instrument is not to be used for a long time.
Specifications of TM550 IR Thermometer:
|
Measuring distance |
D:S=12:1(measuring distance to target object |
|
Measuring condition |
Vacuum mddium |
|
Display resolution |
0.1C/0.1 |
|
Emmissivity rate |
0.1~1 adjustable |
|
Auto power off time |
approx.6s |
|
Sampling rate |
≤0.5s |
|
Backlight function |
yes |
|
Low battery indication |
yes |
|
Data hold function |
yes |
|
Max./Min./AVG./DIF.HOLD function |
yes |
|
High/Low temperature Alarm function |
yes |
|
Zero offset adjustment |
yes |
|
Unit Symbol display |
yes |
Technical parament of TM550 IR Thermometer:
| Function | Range | Accuracy |
|
Temperature
|
-50℃~550℃ | ±1.5℃ or ±1.5% whichever is greater |
