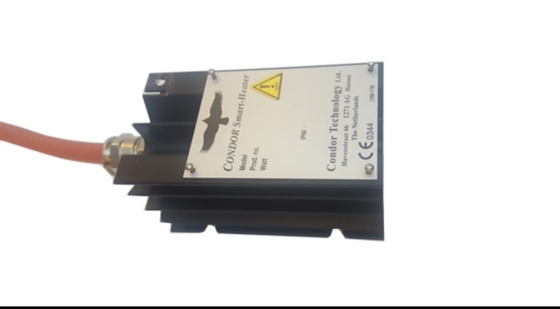

General Purpose Industrial Space Heaters For Enclosure Heating In Non Hazardous Areas GSMLP Heater ELECTRICAL SMART-SPACE HEATER, GENERAL PURPOSE MODEL GSMLP-(*)A

Large Image : General Purpose Industrial Space Heaters For Enclosure Heating In Non Hazardous Areas GSMLP Heater ELECTRICAL SMART-SPACE HEATER, GENERAL PURPOSE MODEL GSMLP-(*)A

Product Details:

Place of Origin:	Mauritius/Netherlands
Brand Name:	Condor
Model Number:	MODEL GSMLP-(*)A

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	EURO/USD/HKD
Packaging Details:	carton
Delivery Time:	2-4 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Features:	No Moving Parts, No Maintenance Required, Therefore Long Lifetime	Wattage:	100-10 Watt Or 200-20 Watt
Electrical Cable:	3 X 1 Sqmm	Material Cable:	Non-braided Silicone Cable
Standard Length:	Ca. 1 Mtr., Other Lengths Optional	Weight:	Ca. 1400 G.
Other Lengths:	To Be Specified	Overall Dimensions:	100 X 54 X 54 Mm (LxWxH)
Housing Material:	Black Anodized Aluminium	Voltage:	110/240 VAC/DC
Power Source:	Electric	Color:	Black

Description

1 Application

Space-heaters for Non-Hazardous locations are designed for

Anticondensation
Freeze protection
Temperature maintenance

2 Features and Advantages

Self-limiting heating elements
Small dimensions
No moving parts, no maintenance required, therefore long lifetime
Can be used for 110/240 VAC/DC

3 Remarks

All SMART Space-heaters are designed around self-limiting heating elements. These semi-conductor elements are saving power consumption.
Our SMART Space-heaters are designed to heat the air inside an enclosure and indirectly the installed equipment. If properly selected for freeze protection, no thermostat will be needed.
When required in other applications, e.g. analyzers, it is normal practice to use our SMART Space-heaters in combination with our Fix-Therm96 thermostats (range from 10°C up to 130°C)
Do not cover the fins to guarantee free convection!

4 Range

GSMLP-1A	ca. 115°C Surface temperature	100-10 Watt
GSMLP-2A	ca. 105°C Surface temperature	100-10 Watt
GSMLP-3A	ca. 90°C Surface temperature	100-10 Watt
GSMLP-4A	ca. 70°C Surface temperature	100-10 Watt
GSMLP-0AHP (High power model)	ca. 130°C Surface temperature	200-20 Watt

* these temperatures are measured at 20°C ambient temperature.

General Purpose Industrial Space Heaters For Enclosure Heating In Non Hazardous Areas GSMLP Heater ELECTRICAL SMART-SPACE HEATER, GENERAL PURPOSE MODEL GSMLP-(*)A 0

5 Technical data

Power consumption	100-10 Watt or 200-20 Watt
Electrical cable	3 x 1 sqmm
Material cable	non-braided silicone cable
Standard length	ca. 1 mtr., other lengths optional
Weight	ca. 1400 g.
Other lengths	to be specified
Overall dimensions	100 x 54 x 54 mm (LxWxH)
Material	black anodized aluminium
Voltage AC/DC	110/240
