CONDOR General Purpose Industrial Space Heaters For Enclosure Heating In Non Hazardous Areas GSP Heater ELECTRICAL SPACE HEATER – MODEL GSP-(*)A

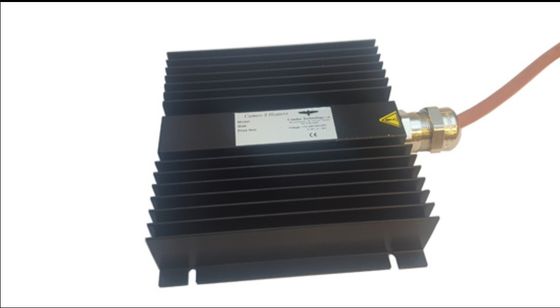

Large Image : CONDOR General Purpose Industrial Space Heaters For Enclosure Heating In Non Hazardous Areas GSP Heater ELECTRICAL SPACE HEATER – MODEL GSP-(*)A

Product Details:

Place of Origin:	Mauritius/Netherlands
Brand Name:	Condor
Model Number:	MODEL GSP-(*)A

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	EURO/USD/HKD
Packaging Details:	carton
Delivery Time:	2-4 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Features:	Small Dimensions	Wattage:	250-25 Watt Or 500-50 Watt
Electrical Cable:	3 X 1 Sqmm	Material Cable:	Non-braided Silicone Cable
Standard Length:	Ca. 1 Mtr., Other Lengths Optional, On Request	Weight:	Ca. 1600 G.
Other Lengths:	To Be Specified	Overall Dimensions:	165 X 164 X 56 Mm (LxWxH)
Housing Material:	Black Anodized Aluminium	Voltage:	110/240 VAC/DC
Power Source:	Electric	Color:	Black

Description

1 Application

Space-heaters for Non-hazardous locations are designed for

Freeze protection
Anti-condensation
Temperature maintenance

2 Features and Advantages

Self-limiting heating elements
Small dimensions
No moving parts, no maintenance required, therefore long lifetime
Can be used for 110 / 240 VAC/DC

3 Remarks

All Cameo Space-heaters are designed around self-limiting heating elements. These semi-conductor elements are saving power consumption.
Our Cameo Space-heaters are designed to heat the air inside an enclosure and indirectly the installed equipment. If properly selected for freeze protection, no thermostat will be needed.
When required in other applications, e.g. analyzers, it is normal practice to use our Space-Heaters in combination with our Fix-Therm96 thermostats (range from 10 °C up to 135 °C).
Do not cover the fins to guarantee free convention.

4 Range

GSP-1A - T3	ca. 115°C Surface temperature	250-25 Watt
GSP-2A - T4	ca. 105°C Surface temperature	250-25 Watt
GSP-3A - T4	ca. 90°C Surface temperature	250-25 Watt
GSP-4A - T4	ca. 70°C Surface temperature	250-25 Watt
GSP-0AHP - T3 (High power model)	ca. 130°C Surface temperature	500-50 Watt

5 Technical Data

Power consumption	250-25 Watt or 500-50 Watt
Electrical cable	3 x 1 sqmm
Material cable	non-braided silicone cable
Standard length	ca. 1 mtr., other lengths optional, on request
Other lengths	to be specified
Weight	ca. 1600 g.
Overall dimensions	165 x 164 x 56 mm (LxWxH)
Material	black anodized aluminium
EX protection class	II2G Ex d IIC T3 or T4 : II2D Ex tD A21 IP66 T 135 °C or T200 °C
Certification	KEMA 01ATEX2124X and IECEx DEK 11.0017
Protect degree	IP 66
Voltage AC/DC	110/240
Ambient temp. range	- 60°C+ 90°C
