Explosionproof Thermostats FIX THERM Inline Thermostat ELECTRICAL FIXTHERM INLINE Ex THERMOSTAT IL-/

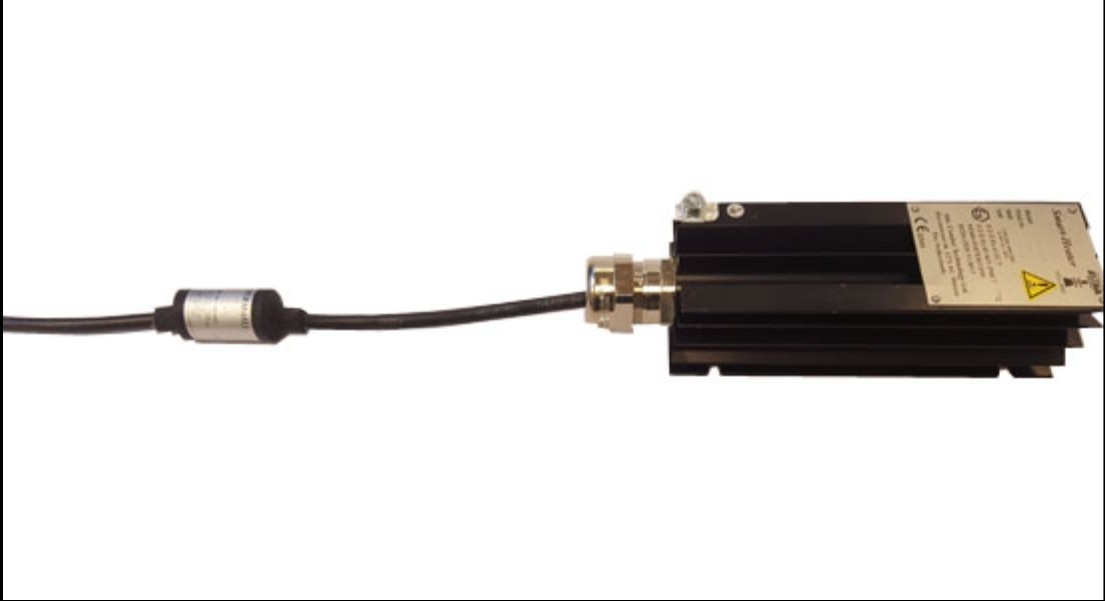

Large Image : Explosionproof Thermostats FIX THERM Inline Thermostat ELECTRICAL FIXTHERM INLINE Ex THERMOSTAT IL-*/*

Product Details:

Place of Origin:	Mauritius/Netherlands
Brand Name:	condor
Certification:	DEKRA 13ATEX0176 and IECEx DEK 13.0062
Model Number:	FIXTHERM INLINE Ex THERMOSTAT IL-/

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	EURO/USD/HKD
Packaging Details:	carton
Delivery Time:	2-4 weeks
Payment Terms:	T/T

Contact Now

Detailed Product Description

Features:	Setpoints Up To 60°C	Housing Material:	Aluminium Covered With Heat-shrink Tube
Voltage:	6A / 240 VAC	Cable:	3x 1 Sqmm
Material Cable:	Silicone Cable, Outer Diam. Ca. 7.4 Mm	Standard Length:	Ca. 1 Mtr
Other Lengths:	On Request	Overall Dimensions:	O.d. Ca. 25 Mm X 44 Mm Length
Weight:	Ca. 30 G.	Switch:	SPST
Set-point Tolerance:	+/- 3°C	Hysteresis:	Ca. 2°C
Ambient Temperature Range:	-55 °C … + 65 °C	EX Protection Class:	ATEX 2 II G Ex Mb IIC T6 Gb, 2 II D Ex Mb IIIC T85°C Db; IECEx Ex Mb IIC T6 Gb, Ex Mb IIIC T85°C Db
Certifications:	DEKRA 13ATEX0176 And IECEx DEK 13.0062	Power Source:	Electric
Color:	Black

Description

1 Application

The FixTherm Inline Thermostats are often used as maximum thermostat in instrumentation cabinets with space-heating, to protect the equipment from overheating.

Prevention of overheating
Temperature protection

2 Features and Advantages

Setpoints up to 60°C
Accurate set-point (± 3°C)
Small hysteresis
Suitable for T6 classification
Can be used for 6A / 240 VAC/DC

3 Remarks

The housing is made from covered aluminium.
When required in applications it is normal practice to use our Space-heaters and Direct-heaters in combination with this
FixTherm Inline Thermostat(range from 10°C up to 60°C).

4 Range

IL-10/5 – going up with 5°C setpoints e.g. 10/5 – 15/10 – 20/15 etc. up to 60°C maximum.

5 Technical data

Housing	Aluminium covered with heat-shrink tube
Current / voltage	6A / 240 VAC
Cable	3x 1 sqmm
Material cable	silicone cable, outer diam. ca. 7.4 mm
Standard length	ca. 1 mtr
Other lengths	on request
Overall dimensions	o.d. ca. 25 mm x 44 mm length
Weight	ca. 30 g.
Switch	SPST
Set-point tolerance	+/- 3°C
Hysteresis	ca. 2°C
Ambient temp. range	-55 °C … + 65 °C
EX protection class	ATEX 2 II G Ex mb IIC T6 Gb, 2 II D Ex mb IIIC T85°C Db; IECEx Ex mb IIC T6 Gb, Ex mb IIIC T85°C Db
Certification	DEKRA 13ATEX0176 and IECEx DEK 13.0062
