| Name: | Portable Dmm | Weight: | 422g（including Battery） |
|---|---|---|---|
| Max Display: | 19999（4 1/2）, Auto Polarity Indication | Model: | VC9807A+ |
| Displaying: | LCD Displaying | Other Name: | Handheld Digital Multimeter |
| High Light: | DCA ACA Portable Dmm,VC9807A+ Portable Dmm,Handheld Digital Multimeter VC9807A+ |
||

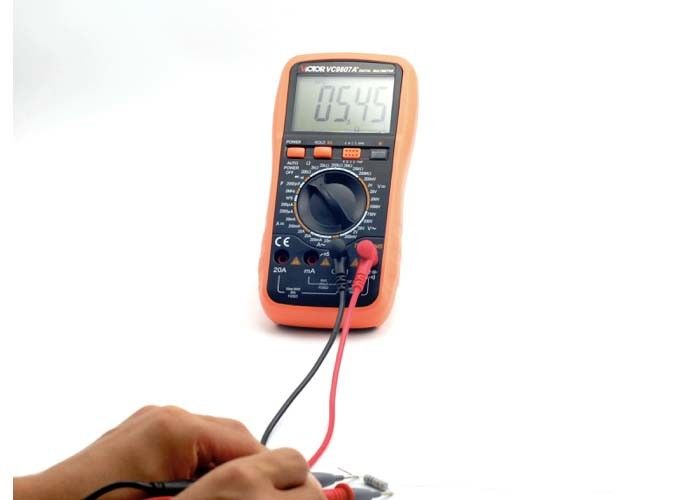

DCV ACV DCA ACA Portable Dmm Handheld Digital Multimeter VC9807A+
Portable Dmm Feature
1. Multifunction:The Digital Multimeter can measure AC/DC voltage,AC/DC
current,resistance,capacitance,frequency,hFE,diode,continuity and conductance.
2. Portable design:There is a back bracket and hanging hole for supporting multimeter,convenient to operate.
3. Wide range of applications:It's a perfect tool for the laboratory,factory and home.
4. Clear to read:With large LCD backlight display and data hold function,convenient to read data.
Specifications of Digital Multimeter VICTOR VC9807A+:
1．Displaying : LCD displaying
2．Max. indication: 19999(4 1/2), auto polarity indication
3．Measuring method: dual slope A/D transfer
4．Sampling rate: approx. 3 times/sec
5．Over range indication: MSD displays “OL” or”-OL”
6．Low battery indication: “” symbol displays
Technical date of Digital Multimeter VICTOR VC9807A+:
| Basic Function | Range | VICTOR 9807A+ | VICTOR 980+ |
| DC Voltage | 200mV/2V/20V/200V | ±(0.05%+5) | ±(0.05%+3) |
| 1000V | ±(0.1%+5) | ±(0.1%+5) | |
| AC Voltage | 200mV | ±(1.0%+25) | ±(1.0%+25) |
| 2V/20V/200V | ±(0.8%+25) | ±(0.8%+25) | |
| 750V | ±(1.2%+25) | ±(1.0%+25) | |
| DC Current | 200uA/2mA/20mA | ±(0.5%+4) | ±(0.5%+4) |
| 200mA | (9+%80)+ | ±(0.8%+6) | |
| 2A | ±(2.0%+15) | ||
| 20A | ±(2.0%+15) | ±(2.0%+15) | |
| AC Current | 20mA/200mA | ±(1.5%+15) | ±(1.5%+25) |
| 20A | ±(2.5%+35) | ±(2.5%+35) | |
| Resistance | 200Ω | ±(0.4%+10) | ±(0.3%+10) |
| 2kΩ/20kΩ/200kΩ/2MΩ | ±(0.4%+5) | ±(0.3%+5) | |
| 20MΩ | ±(1.2%+25) | ±(1.2%+25) | |
| 200MΩ | ±(5.0%+45) | ±(5.0%+45) | |
| Conductance | (0.1~100)nS | ±(1.0%+30) | |
| Capacitance | 20nF/200nF/2uF/20uF/200uF/2000uF | ±(4.0%+50) | ±(4.0%+50) |
| Frequency | 20Hz/200Hz/2kHz/20kHz/200kHz/2MHz | ±(0.1%+3) | ±(0.1%+3) |
| Special Function | |||
| Diode/Transistor | V | V | |
| Continuity Buzzer | V | V | |
| Low battery indication | V | V | |
| Hold | Data Hold | Data Hold | |
| Auto power off | V | V | |
| Backlight | V | V | |
| Function protection | V | V | |
| 200mA protection | V | V | |
| Input impedance | 10MΩ | 10MΩ | |
| Sampling rate | 3 times/s | 3 times/s | |
| Operation way | Manual range | Manual range | |
| Max.Display | 19999 | 19999 | |
| LCD Size | 70*50mm | 70*50mm | |
| Battery | 9V(6F22) | 9V(6F22) |
