| Name: | VC9807A+ Portable Digital Multimeter | Weight: | 422g（including Battery） |
|---|---|---|---|
| Max Display: | Auto Polarity Indication | PRODUCT MODEL: | VC9807A+ |
| Displaying: | LCD Displaying | SIZE: | 190*88.5*27.5 Mm |
| High Light: | 4 1/2 Portable Digital Multimeter,VC9807A+ Portable Digital Multimeter,VC9807A+ portable dmm |
||

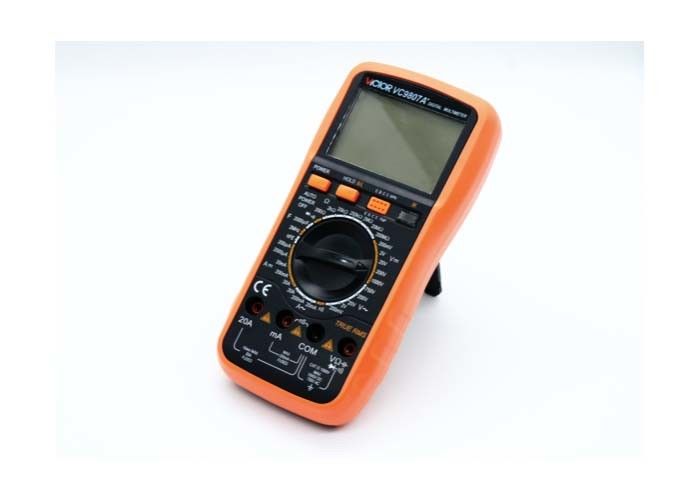

VC9807A+ 4 1/2 Portable Digital Multimeter Auto Polarity Indication
Introduction of Portable Digital Multimeter
1. New type holster, streamlined design;
2. Large LCD makes the reading clearly;
3. Strong antimagnetic and anti-jamming performance;
4. Auto power off function after 30 minutes;
5. Full function protection, anti high voltage circuit design(voltage dependent resistor:1300V);
6. Unit symbol display, very easy to reading;
7. Max. measuring range of capacitance:200uF
Technical data of Portable Digital Multimeter :
| Basic Function | Range | VICTOR 9807A+ | VICTOR 980+ |
| DC Voltage | 200mV/2V/20V/200V | ±(0.05%+5) | ±(0.05%+3) |
| 1000V | ±(0.1%+5) | ±(0.1%+5) | |
| AC Voltage | 200mV | ±(1.0%+25) | ±(1.0%+25) |
| 2V/20V/200V | ±(0.8%+25) | ±(0.8%+25) | |
| 750V | ±(1.2%+25) | ±(1.0%+25) | |
| DC Current | 200uA/2mA/20mA | ±(0.5%+4) | ±(0.5%+4) |
| 200mA | (9+%80)+ | ±(0.8%+6) | |
| 2A | ±(2.0%+15) | ||
| 20A | ±(2.0%+15) | ±(2.0%+15) | |
| AC Current | 20mA/200mA | ±(1.5%+15) | ±(1.5%+25) |
| 20A | ±(2.5%+35) | ±(2.5%+35) | |
| Resistance | 200Ω | ±(0.4%+10) | ±(0.3%+10) |
| 2kΩ/20kΩ/200kΩ/2MΩ | ±(0.4%+5) | ±(0.3%+5) | |
| 20MΩ | ±(1.2%+25) | ±(1.2%+25) | |
| 200MΩ | ±(5.0%+45) | ±(5.0%+45) | |
| Conductance | (0.1~100)nS | ±(1.0%+30) | |
| Capacitance | 20nF/200nF/2uF/20uF/200uF/2000uF | ±(4.0%+50) | ±(4.0%+50) |
| Frequency | 20Hz/200Hz/2kHz/20kHz/200kHz/2MHz | ±(0.1%+3) | ±(0.1%+3) |
| Special Function | |||
| Diode/Transistor | V | V | |
| Continuity Buzzer | V | V | |
| Low battery indication | V | V | |
| Hold | Data Hold | Data Hold | |
| Auto power off | V | V | |
| Backlight | V | V | |
| Function protection | V | V | |
| 200mA protection | V | V | |
| Input impedance | 10MΩ | 10MΩ | |
| Sampling rate | 3 times/s | 3 times/s | |
| Operation way | Manual range | Manual range | |
| Max.Display | 19999 | 19999 | |
| LCD Size | 70*50mm | 70*50mm | |
| Battery | 9V(6F22) | 9V(6F22) |
