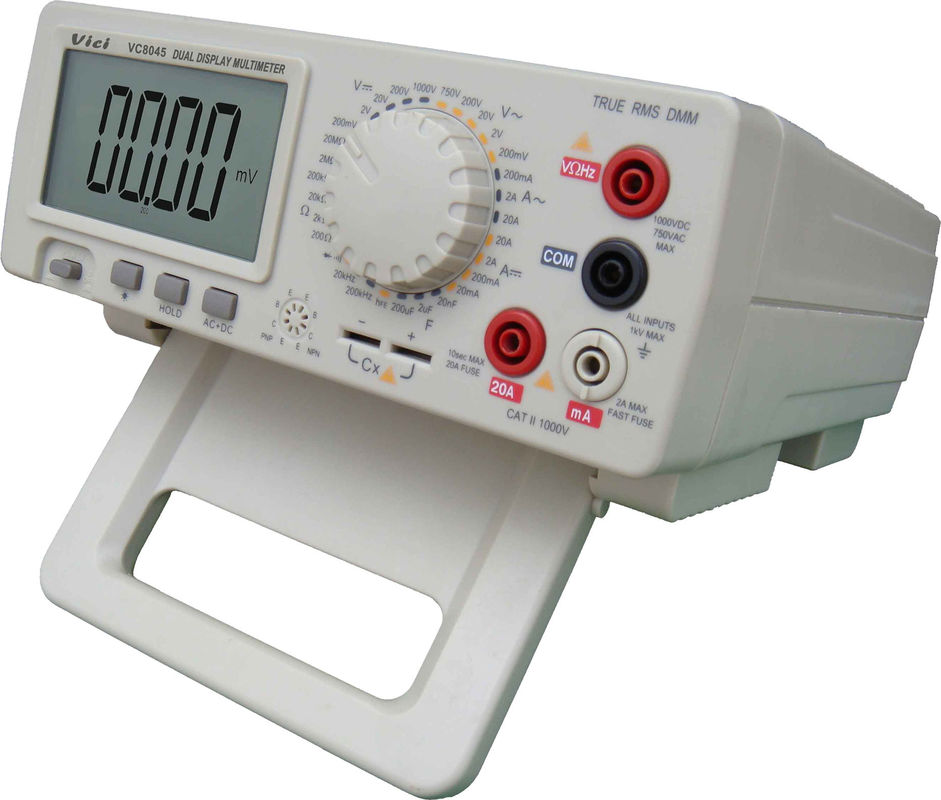

Bench Type Digital Multimeter Vc8045 Multimeter

Bench Type Digital Multimeter Vc8045 Multimeter

Bench Type Digital Multimeter Vc8045 Multimeter
Bench Type Digital Multimeter Vc8045 Multimeter

Large Image :  Bench Type Digital Multimeter Vc8045 Multimeter

Product Details:
Place of Origin: CHINA
Certification: CE
Model Number: Vc8045
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Packaging Details: CARTON
Delivery Time: 5-8DAYS
Payment Terms: Western Union, T/T
Detailed Product Description
Weight: 1.4kg Max Display: 19999
Power: AC 220V/110V 50Hz/60Hz Sampling Rate: 3times/S
Data Hold: YES PRODUCT MODEL: Vc8045

VC8045 4 1/2-- Bench type digital multimeter Multimeter
1. 4 1/2 digit large LCD display with backlight;
2.With the DCV,ACV,DCA,ACA,Ω,CAP,Hz,hFE,diode and continuity test function;
3.Max. voltage measuring: DC 1000Vor AC value, resolution:10uV;
4.Max. current measuring: 20A,polarity automatic switch,data hold,backlight
5.AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring

Technical data:
Basic function Range Basic accuracy
DCV 200mV/2V/20V/200V/1000V ±(0.05%+3)
ACV 200mV/2V/20V/200V/750V ±(0.8%+80)
DCA 20mA/200mA/2A/20A ±(0.35%+10)
ACA 200mA/2A/20A ±(0.8%+80)
Resistance 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.1%+5)
Frequency 20kHz/200kHz ±(1.0%+20)
Capacitance 20nF/2uF/200uF ±(3.5%+20)
Special function VC8045
Diode test
hFE test
True RMS
Continuity alarm
Overload protect
Input protect 10MΩ
Sampling rate 3times/s
AC Frequency response 40Hz-50kHz
Operation way Manual range
Max. display 19999
Power AC 220V/110V 50Hz/60Hz
General characteristic:
Color beige
Weight 1.4kg
Meter size 245×220×82mm
Standard accessory Test leads, power cord ,manual
Packing Gift box
Standard quantity per CTN 6pcs
Carton size 58.5×47×31.5cm
Standard G.W. per CTN 12.5kg


Bench Type Digital Multimeter Vc8045 Multimeter 0




1. What is our company MOQ?

As for now it is flexible, but it affects prices.


2. What's the best payment term?

Such as Western Union,T/T, L/C,Paypal, Bank Transfer, Money Gram, etc.


3.What's our company sample policy?

We will send you some samples with pleasure,but you need to pay for it.


4. What is our shipment and delivery term?

Shipment: Professional DHL/Fedex/TNT/UPS and other special line.

Delivery term:Within 4-7 days after payment by (DHL/TNT/UPS/EMS/Fedex)
