| Power Supply: | One 9V Battery (NEDA1604/6F22 Or Equivalent） | Weight: | Approx.422g (including 9V Battery) |
|---|---|---|---|
| Max Display: | 1999（3 1/2）, Auto Polarity Indication | PRODUCT MODEL: | VC9808+ |
| Displaying: | LCD Displaying | SIZE: | 190×88.5×27.5 Mm |
| Highlight: | DCA ACA Portable Digital Multimeter,VC9808+ Portable Digital Multimeter,VC9808+ Smart Digital Multimeter |
||

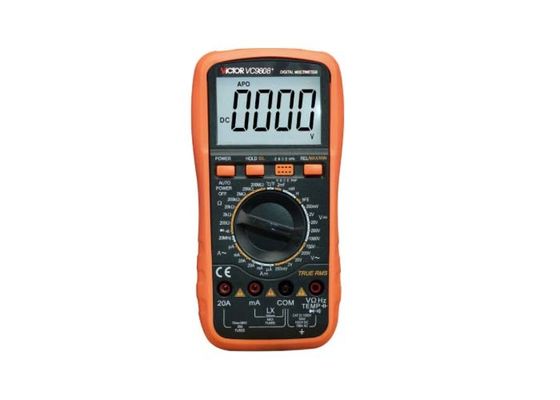

Digital Multimeter VICTOR VC9808+ Stable And High Performance
The instrument is a stable and good performance digital multimeter driven by battery. It uses the LCD with 42mm-high figure to make the reading clear. Unit symbol displaying, backlight and the function of overload protection make operation is convenient.
The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance, capacitance, inductance, temperature and frequency, and diode, triode and continuity test. The instrument takes dual-integral A/D converter as key point, is an excellent tool.
Specifications of Digital Multimeter VICTOR VC9808+:
1-1．Displaying : LCD displaying
1-2．Max. indication: 1999(3 1/2), auto polarity indication
1-3．Measuring method: dual slope A/D transfer
1-4．Sampling rate: approx. 3 times/sec
1-5．Over range indication: MSD displays “OL”
1-6．Low battery indication: “” symbol displays
1-7．Operation: 0～40℃,relative humidity <80%
1-8．Power:one 9V battery (NEDA1604/6F22 or equivalent)
1-9．Size: 190×88.5×27.5 mm
1-10．Weight: approx.422g (including 9V battery)
Technical date of Digital Multimeter VICTOR VC9808+:
| Baslc | Range | VC9808+ | VC9806+ |
| DC Voltage | 200mV/2V/20V/200V | ±(0.5%+3) | ±(0.1%+5) |
| 1000V | ±(0.8%+10) | ±(0.2%+5) | |
| AC Voltage | 200mV | ±(0.8%+5) | ±(1.0%+25) |
| 2V/20V/200V | ±(0.8%+5) | ±(0.8%+25) | |
| 750V | ±(1.2%+10) | ±(1.0%+25) | |
| DC Current | 200uA/2mA/20mA | ±(0.8%+10) | ±(0.5%+4) |
| 200mA | ±(0.8%+10) | ±(0.8%+6) | |
| 20A | ±(2.0%+5) | ±(2.0%+15) | |
| AC Current | 200uA/2mA/20mA | ±(0.8%+10) | |
| 200mA | ±(0.8%+10) | ±(1.5%+15) | |
| 20A | ±(2.0%+5) | ±(2.5%+35) | |
| Resistance | 2000 | ±(0.8%+5) | ±(0.4%+10) |
| 2kΩ/20kΩ/200kΩ/2MΩ | ±(0.8%+3) | ±(0.4%+5) | |
| 20MΩ | ±(1.0%+25) | ±(1.2%+25) | |
| 200MΩ | ±(5.0%+30) | ±(5.0%+45) | |
| Inductance | 2mH/20mH/200mH/2H/20H | ±(2.5%+30) | |
| Conductance | (0.1~100)nS | ±(1.0%+30) | |
| Capacitance | 20nF/200nF/2uF/20uF/200uF/2000uF | ±(4.0%+50) | |
| 200uF/2000uF | ±(5.0%+10) | ||
| 20nF/200nF/2uF/20uF | ±(3.5%+20) | ||
| Frequency | 20Hz/200Hz/2kHz/20kHz/200kHz/2MHz | ±(0.1%+3) | |
| 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/1 | ±(1.0%+3) | ||
| Celsius | (-20~1000)C | ±(1.0%+5) | |
| Fahrenheit | (0~1832)F | ±(0.75%+5) | |
| Special Function | |||
| Diode Transistor | yes | yes | |
| Continuity Buzzer | yes | yes | |
| Low battery indication | yes | yes | |
| Hold | Peak Hold | Data Hold | |
| Auto power off | yes | yes | |
| Backlight | yes | yes | |
| Function protection | yes | yes | |
| 200mAprotection | yes | yes | |
| Input impedance | 10MΩ | 10MΩ | |
| Sampling rate | 3 times/s | 2 times/s | |
| AC frequency response | 40-1000Hz | 40-1000Hz | |
| Operation way | Manual | Manual | |
| Max.Display | 1999 | 19999 | |
| LCD Size | 70*50mm | 70*50mm | |
| Battery | 9V(6F22) | 9V(6F22) | |
