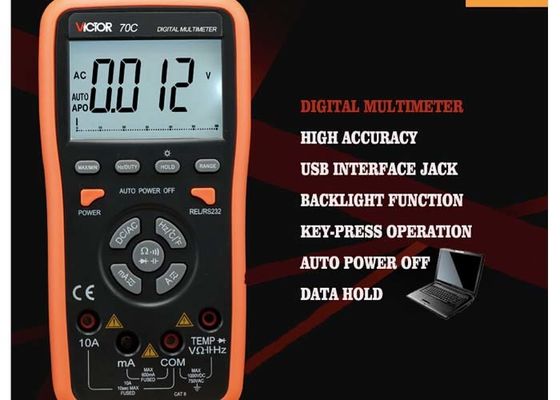

VICTOR 70C Portable Digital Multimeter 3 5/6 Key Touching Function

VICTOR 70C Portable Digital Multimeter 3 5/6 Key Touching Function

VICTOR 70C Portable Digital Multimeter 3 5/6 Key Touching Function
VICTOR 70C Portable Digital Multimeter 3 5/6 Key Touching Function VICTOR 70C Portable Digital Multimeter 3 5/6 Key Touching Function VICTOR 70C Portable Digital Multimeter 3 5/6 Key Touching Function

Large Image :  VICTOR 70C Portable Digital Multimeter 3 5/6 Key Touching Function

Product Details:
Place of Origin: CHINA
Brand Name: VICTOR
Certification: CE
Model Number: 70C
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: negotiable
Packaging Details: CARTON
Delivery Time: 5-8DAYS
Payment Terms: Western Union, T/T
Detailed Product Description
Power Supply: Two 1.5v Batteries ("AAA" 7# Batteries) Weight: About 410g (including Battery )
Max Display: 5999.3 5/6 Display Automatic Polarity Display And Unit Display. PRODUCT MODEL: 70C
Displaying: LCD Displaying SIZE: 185mm×91mm×49mm
High Light:

VICTOR 70C Portable Digital Multimeter

,

3 5/6 Portable Digital Multimeter

,

VICTOR 70C dmm digital multimeter

Digital Multimeter VICTOR 70C Stable And High Performance

     Endowed with the key touching function instead of the traditional mechanical knobs, is a new type of 3 5/6 digital multimeter equipped with the LCD display device with the text height of 33mm which has the merits of visual display, easy operation, stable performance and high reliability. It can be used to measure DC voltage, AC voltage, DC current, AC current, resistance, capacitance, frequency, temperature, diode and make on-and-off test. Meanwhile, it is available for unit symbol display, data retention, the measurement of maximum and minimum value, automatic/manual range switching, automatic power off and alarm function. The complete machine takes a switching integrated circuit which can directly drive LCD microprocessor and double-integrating A/D and a digital display drive offering high resolution and high precision. Due to it's complete functions, high measurement accuracy and convenient operation, the multimeter is the ideal tool in laboratory and factory as well as for radio fans and family.



Specifications of Digital Multimeter VICTOR 70C:

1. Display mode: LCD

2. Maximum display: 5999.3 5/6 display automatic polarity display and unit display.

3. Analog bar. 30 times/sec, display of 61 analog bars.

4. Measurement mode: dual integration A/D conversion.

5. Sampling rate: About 3 time/s.

6. Over range: Display “OL”

7. Low voltage display: about 2.4v, the symbol  displayed.

8. Working temperature: :0~40℃

9 Storage temperature: -10~50℃, relative humidity <80%

10. Power: Two 1.5v batteries ("AAA" 7# batteries)

11 Volume (Dimensions): 185mm×91mm×49mm(Length*width *height)

12 Weight: About 410g (including battery )



Technical date of Digital Multimeter VICTOR 70C:

Range Accuracy Resolution
600mV ±(0.5%+4d) 0.1mV
6V 1mV
60V 10mV
600V 100mV
1000V ±(1.0%+4d) 1V
Range Accuracy Resolution
6V ±(0.8%+10d) 1mV
60V 10mV
600V 100mV
750V ±(1.0%+6d) 1V
Range Accuracy Resolution
60mA ±(1.0%+10d) 10μA
600mA 100μA
6A ±(1.2%+10d) 1mA
10A 10mA

VICTOR 70C Portable Digital Multimeter 3 5/6 Key Touching Function 0
