| Power Supply: | 2pcs 1.5V Batteries (AAA 7# Battery) | Weight: | 390g (including Batteries) |
|---|---|---|---|
| Max Display: | 3999 (3 3/4) Counts Automatic Polarity Display And Unit Display. | PRODUCT MODEL: | VICTOR 86B |
| Displaying: | LCD Displaying | SIZE: | 192mm X 95mm X 48mm |
| High Light: | VICTOR 86B Dmm Digital Multimeter,VICTOR 86B Multimeter For Electronics,USB Interface Dmm Digital Multimeter |
||

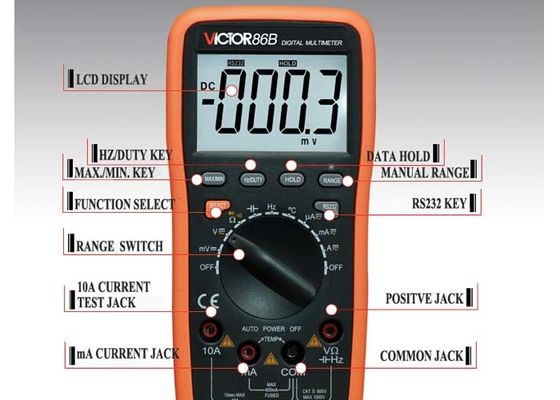

Digital Multimeter VICTOR 86B Stable And High Performance
It is a good performance and Auto Range 3 3/4 digital instrument with USB interface, driven by battery. It adopts the LCD with 42mm high figure to make the reading very clear and it possesses the Data Hold and Auto Power Off function to make the use more convenient.
This instrument has the function of measuring ACV, DCV, ACA, DCA, Resistance, Capacitance, Temperature, Diode, Continuity, Frequency, and Duty Circle, etc. It takes the dual-integral A/D Converter as core, and possesses the Auto Range and Manual Range selection function. It is an excellent tool and most suitable for lab, factory, maintenance and repair users.
Specifications of Digital Multimeter VICTOR 86B:
1Display: LCD
2Max Display: 3999 (3 3/4) counts automatic polarity display and unit display.
3Measuring method: dual-integral A/D converter
4Sampling rage: 3 times/second
5Over range indication: display “OL”
6 Low battery indication: “”appearance ( about 2.4V)
7 RS232 serial data transmission
8 Auto Power Off function (No Auto Power Off function at the model of RS232)
9 Operation environment: 0～40℃,relative humidity <80%
10 Storage environment: -10～50℃,relative humidity <80%
11 Power: 2pcs 1.5V batteries (AAA 7# battery)
12 Dimension: 192mm x 95mm x 48mm
13 Weight: Approx. 390g (including batteries)
14 Accessories: operation manual, leather carrying case, holster, gift box, test lead, temperature cable and 2pcs 1.5V batteries.
Technical date of Digital Multimeter VICTOR 86B:
| Basic Function Range VICTOR86B VICTOR86C | |||
| DC Voltage | 400mV/4V/40V/400V/1000V | ±(0.5%+4) | ±(0.5%+4) |
| AC Voltage | 400mV/4VI40VI400V/750V | ±(0.8%+10) | ±(0.8%+10) |
| DC Current | 400uA/4000uA/40mA/400mA/4A/10A | ±(1.0%+10) | ±(1.0%+10) |
| AC Current | 400uA/4000uA/40mA/400mA/4A/10A | ±(1.5%+10) | ±(1.5%+10) |
| Resistance | 4000/4kQ/40kQ/400kΩ/4MΩ/40MΩ | ±(0.8%+4) | ±(0.8%+4) |
| Capacitance | 50nF/500nF/5uF/50uF/100uF | ±(3.5%+8) | |
| 40nF/400nF/4uF/40uF/200uF | ±(3.5%+8) | ||
| Frequency | 4Hz140Hz/400Hz/4kHz|40kHz/400KHz/4MHz/30MHz | ±(0.5%+4) | |
| 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/30MHz | ±(0.5%+4) | ||
| Temperature | (-20~1000)℃ | ±(1.0%+5℃) | ±(1.0%+5℃) |
| Celsius | (0~1832)F | 土(1.5％＋15F) | |
| special functions | VICTOR 86B | VICTOR 86C |
| Diode test | ✓ | ✓ |
| Continuity buzzer | ✓ | ✓ |
| Low battery indication | ✓ | ✓ |
| Data hold | ✓ | ✓ |
| Auto power off | ✓ | ✓ |
| Bar graph display | 41segment(30time/s) | |
| RS232 interface jack | ✓ | ✓ |
| Max./Min | ✓ | |
| Function protection | ✓ | ✓ |
| Shockproof protection | ✓ | ✓ |
| Frequency /duty cycle | 0.1%~99.9% | |
| Input impedance | 10MΩ | |
| Sampling rate | 3 times/s | |
| AC Frequency response | (40-400)Hz | |
| Operation way | Manual range/Auto range | |
| Max.Display | 3999 | |
| LCD Size | 70x50mm | |
| Power | 3V(1.5Vx2) | |
