| Power Supply: | 2pcs 1.5V Batteries (AAA 7# Battery) | Weight: | 390g (including Batteries) |
|---|---|---|---|
| Max Display: | 5999 (3 5/6) Counts Automatic Polarity Display And Unit Display. | PRODUCT MODEL: | VICTOR 86E |
| Displaying: | LCD Displaying | SIZE: | 192mm X 95mm X 48mm |
| High Light: | VICTOR 86E Multimeter Tool,86E Victor Multimeter,DC 1000V Victor Multimeter |
||

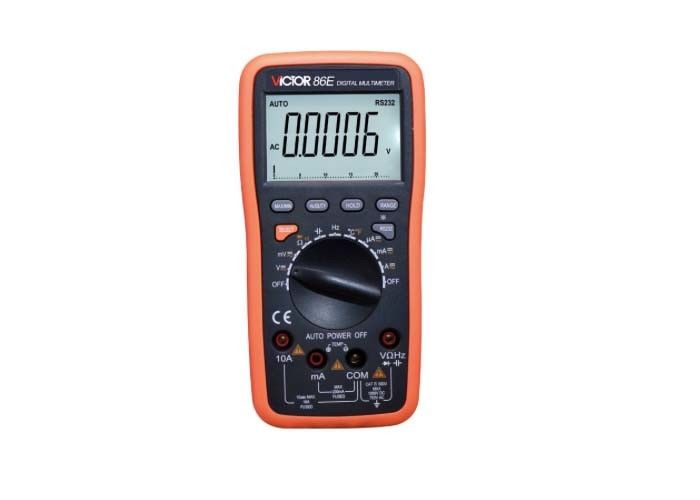

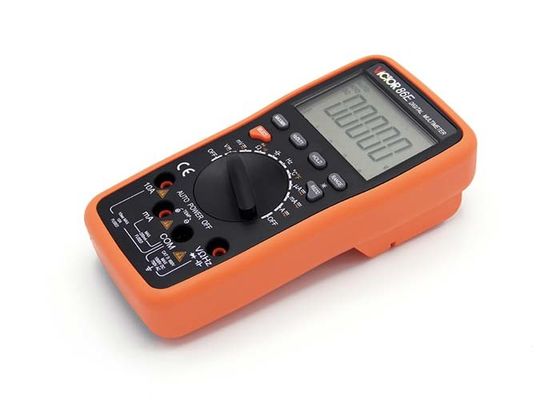

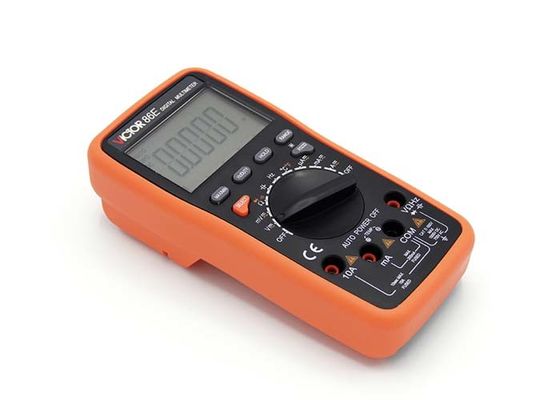

Digital Multimeter VICTOR 86E Stable And High Performance
The instrument is a high performance, high accuracy, 3 5/6 digit multi-meter, it uses the LCD with 33mm high figure to make the reading clear, the display simple and the operation convenient. The instrument can measure DC and AC voltage, DC and AC current, Resistance, Capacitance, Frequency, Duty Circle, Transistor, Diode and Continuity test; And it also has the features of Bar Graph, Unit Indication, Data Hold, Relative Value Measurement (REL), USB Interface, AUTO/MANUAL range selection, Auto Power Off and Alarm Buzzer. The instrument adopts the directly driven 4 digits microprocessor and dual-integral A/D converter, which provide the high solution and high accuracy digital displaying driver. Because of its outstanding features, it is an excellent tool and most suitable for lab, factory, maintenance and repair users.
Specifications of Digital Multimeter VICTOR 86E:
1 Display: LCD
2 Max Display: 5999 (3 5/6) counts automatic polarity display and unit display.
3 Measuring method: dual-integral A/D converter
4 Sampling rage: 3 times/second
5 Over range indication: display “OL”
6 Low battery indication: “ ”appearance
7 Operation environment: 0~40°C,relative humidity <80%
8 Storage environment: -10~50°C,relative humidity <80%
9 Power: 2pcs 1.5V batteries (AAA 7# battery)
10 Dimension: 192mm x 95mm x 48mm
11 Weight: Approx. 390g (including batteries)
Technical date of Digital Multimeter VICTOR 86E:
| Basic Function | Range | VICTOR 86D | VICTOR 86E |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±(0.5%+4) | |
| 220mV12.2V/22VI220V | ±(0.05%+8d) | ||
| 1000V | ±(0.1%+10d) | ||
| AC Voltage | 6V/60V/600V/750V | ±(0.8%+10) | |
| 220mV | ±(0.5%+25d) | ||
| 2.2V/22V/220V | ±(0.5%+5d) | ||
| 750V | ±(1.0%+25d) | ||
| DC Current | 600uA/6000uA/60mA/600mA/6A/10A | ±(1.0%+10) | |
| 220uA/2200uA/22mA/220mA/10A | ±(0.5%+4d) | ||
| AC Current | 600uA/6000uA/60mA/600mA/6A/10A | ±(1.5%+10) | |
| 220uA/2200uA/22mA/220mA/10A | ±(0.8%+15d) | ||
| Resistance | 6000/6kQ/60kΩ/600kQ/6MQ/60MQ | ±(0.8%+4) | |
| 220 Ω | ±(0.5%+30d) | ||
| 2.2kQ/22kΩ/220kΩ/2.2MΩ | ±(0.4%+5d) | ||
| 22MΩ | ±(0.5%+25d) | ||
| 220MQ | ±(5%+10d) | ||
| Capacitance | 40nF/400nF/4uF/40uF/200uF | ±(3.5%+8) | |
| 22nF/220nF/2.2uF/22uF/220uF | ±(2.5%+30d) | ||
| 2.2mF/22mF | ±(5.0%+50d) | ||
| 220mF | ±(7.0%+50d) | ||
| Frequency | 100Hz/1kHz/10kHz/100kHz/1MHz/30MHz | ±(0.5%+4) | |
| 22Hz/220Hz/22KHz/220KHz/2.2MHz/22MHz | ±(0.1%+4d) | ||
| 80MHz | ±(0.2%+4d) | ||
| Temperature | (-20~1000)℃ | ±(1.0%+5℃) | |
| -20-400℃ | ±(1.0%+5℃) | ||
| ≥400-1000℃ | ±(1.5%+15℃) | ||
| Celsius | (0~1832)F | ±(1.0%+5'F) | |
| -4~752F | ±(1.2%+6F) | ||
| ≥752~1832T | 土(1.9％＋25F) |
| Special function | VICTOR 86D | VICTOR 86E |
| Diode test | ✓ | ✓ |
| Transistor test | ✓ | ✓ |
| Continuity buzzer | ✓ | ✓ |
| Low battery indication | ✓ | ✓ |
| Data hold | ✓ | ✓ |
| Auto power off | ✓ | ✓ |
| Bar graph display | 61segment(30time/s) | 46segment(20time/s) |
| RS232 interface jack | ✓ | ✓ |
| Max./Min | ✓ | |
| Function protection | ✓ | ✓ |
| Shockproof protection | ✓ | ✓ |
| Frequency/duty cycle | 0.1%~99.9% | 5.0%~94.9% |
| Input impedance | 10MΩ | 10MΩ |
| Sampling rate | 3 times/s | 2 times/s |
| AC Frequency response | (40-400)Hz | (40-400)Hz |
| Operation way | Manual range/Auto range | Manual range/Auto range |
| Max.Display | 5999 | 22000 |
| LCD Size | 70x50mm | 70x50mm |
| Power | 3V | 9V |
